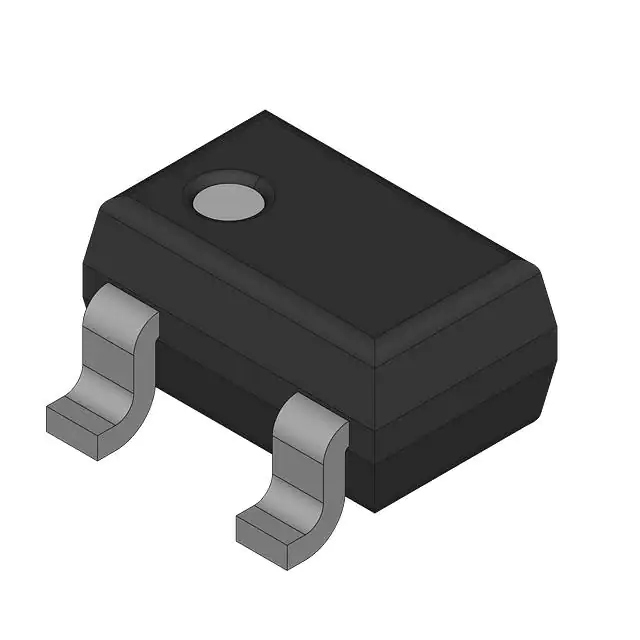

The BFU530W,115 is an NPN wideband silicon RF transistor produced by NXP USA Inc. This transistor is designed for high-speed, low-noise applications and is part of the BFU5 family of transistors. It is packaged in a plastic, 3-pin SOT323 package, making it suitable for small signal to medium power applications up to 2 GHz. The BFU530W is AEC-Q101 qualified, ensuring its reliability in automotive and other demanding environments.

Key Specifications

ParameterConditionsMinTypMaxUnit
VCB (Collector-Base Voltage)Open Emitter--24V
VCE (Collector-Emitter Voltage)Open Base--12V
VCE (Collector-Emitter Voltage)Shorted Base--24V
VEB (Emitter-Base Voltage)Open Collector--2V
IC (Collector Current)--1040mA
Ptot (Total Power Dissipation)Tsp ≤ 87°C--450mW
hFE (DC Current Gain)IC = 10 mA; VCE = 8 V6095200-
Cc (Collector Capacitance)VCB = 8 V; f = 1 MHz-0.68-pF
fT (Transition Frequency)IC = 15 mA; VCE = 8 V; f = 900 MHz-11-GHz

Key Features

  • Low noise, high breakdown RF transistor
  • AEC-Q101 qualified for automotive and other demanding applications
  • Minimum noise figure (NFmin) = 0.6 dB at 900 MHz
  • Maximum stable gain 18.5 dB at 900 MHz
  • 11 GHz fT silicon technology

Applications

  • Applications requiring high supply voltages and high breakdown voltages
  • Broadband amplifiers up to 2 GHz
  • Low noise amplifiers for ISM applications
  • ISM band oscillators

Q & A

  1. What is the package type of the BFU530W transistor?
    The BFU530W transistor is packaged in a plastic, 3-pin SOT323 package.
  2. What is the maximum collector-emitter voltage for the BFU530W?
    The maximum collector-emitter voltage (VCE) is 12 V with the base open and 24 V with the base shorted.
  3. What is the maximum collector current for the BFU530W?
    The maximum collector current (IC) is 40 mA.
  4. What is the total power dissipation limit for the BFU530W?
    The total power dissipation (Ptot) is limited to 450 mW at Tsp ≤ 87°C.
  5. What is the DC current gain (hFE) of the BFU530W?
    The DC current gain (hFE) is between 60 and 200 at IC = 10 mA and VCE = 8 V.
  6. What is the transition frequency (fT) of the BFU530W?
    The transition frequency (fT) is 11 GHz at IC = 15 mA, VCE = 8 V, and f = 900 MHz.
  7. Is the BFU530W suitable for automotive applications?
    Yes, the BFU530W is AEC-Q101 qualified, making it suitable for automotive and other demanding applications.
  8. What are the typical applications of the BFU530W?
    The BFU530W is typically used in broadband amplifiers up to 2 GHz, low noise amplifiers for ISM applications, and ISM band oscillators.
  9. What is the minimum noise figure (NFmin) of the BFU530W?
    The minimum noise figure (NFmin) is 0.6 dB at 900 MHz.
  10. What is the maximum stable gain of the BFU530W?
    The maximum stable gain is 18.5 dB at 900 MHz.
