Overview

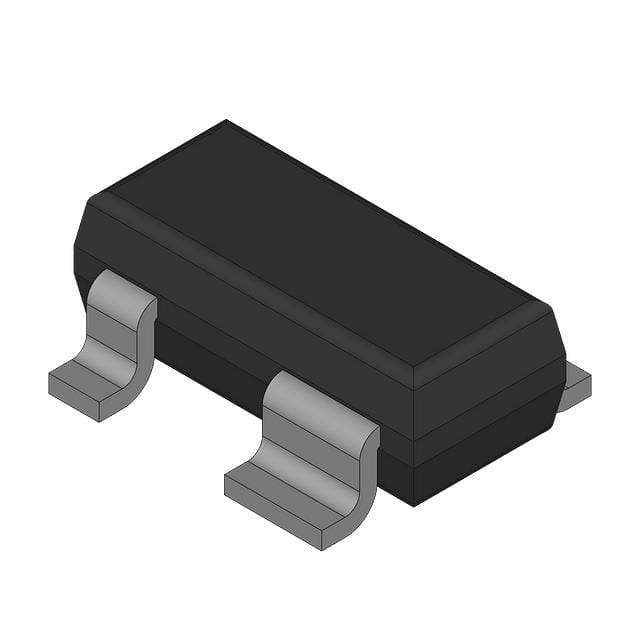

The BAV23/DG/B2215, produced by NXP USA Inc., is a dual high-voltage switching diode encapsulated in a small SOT143B Surface-Mounted Device (SMD) plastic package. This component is designed for high-speed switching applications at high voltages, making it suitable for a variety of industrial, automotive, and consumer electronics.
Key Specifications
| Parameter | Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Reverse Voltage (VR) | 200 | V | |||
| Repetitive Peak Reverse Voltage (VRRM) | 250 | V | |||
| Forward Current (IF) | 225 | mA | |||
| Repetitive Peak Forward Current (IFRM) | 625 | mA | |||
| Non-Repetitive Peak Forward Current (IFSM) | tp = 1 μs | 9 | A | ||
| Reverse Recovery Time (trr) | 50 | ns | |||
| Reverse Current (IR) | VR = 200 V | 100 | nA | ||
| Capacitance (Cd) | 2 | pF | |||
| Junction Temperature (Tj) | 150 | °C | |||
| Ambient Temperature (Tamb) | -65 | 150 | °C |
Key Features
- High switching speed: trr ≤ 50 ns
- Low leakage current
- Repetitive peak reverse voltage: VRRM ≤ 250 V
- Low capacitance: Cd ≤ 2 pF
- Small SMD plastic package (SOT143B)
- Dual isolated configuration
Applications
The BAV23/DG/B2215 is suitable for various applications, including:
- High-speed switching at high voltage
- High-voltage general-purpose switching
- Automotive electronics
- Industrial control systems
- Consumer electronics
- Power supplies and converters
Q & A
- What is the maximum repetitive peak reverse voltage of the BAV23/DG/B2215?
The maximum repetitive peak reverse voltage is 250 V. - What is the typical reverse recovery time of the BAV23/DG/B2215?
The typical reverse recovery time is 50 ns. - What is the maximum forward current of the BAV23/DG/B2215?
The maximum forward current is 225 mA. - What is the maximum junction temperature for the BAV23/DG/B2215?
The maximum junction temperature is 150 °C. - What is the package type of the BAV23/DG/B2215?
The package type is SOT143B. - What are the typical applications of the BAV23/DG/B2215?
The typical applications include high-speed switching at high voltage, high-voltage general-purpose switching, automotive electronics, industrial control systems, and consumer electronics. - What is the maximum capacitance of the BAV23/DG/B2215?
The maximum capacitance is 2 pF. - Is the BAV23/DG/B2215 suitable for high-temperature environments?
Yes, it can operate in ambient temperatures ranging from -65 °C to 150 °C. - How many diodes are included in the BAV23/DG/B2215 package?
The package includes two isolated diodes. - Where can I find more detailed specifications and datasheets for the BAV23/DG/B2215?
You can find detailed specifications and datasheets on the official NXP website or through authorized distributors.
