Overview
The AU5790D14,512 is a CANbus transceiver produced by NXP USA Inc. This integrated circuit is designed to support the Controller Area Network (CAN) protocol, which is widely used in automotive and industrial applications for reliable and efficient data communication. The AU5790D14,512 is part of NXP's extensive range of interface and communication solutions, known for their high performance and reliability.
Key Specifications
| Parameter | Value |
|---|---|

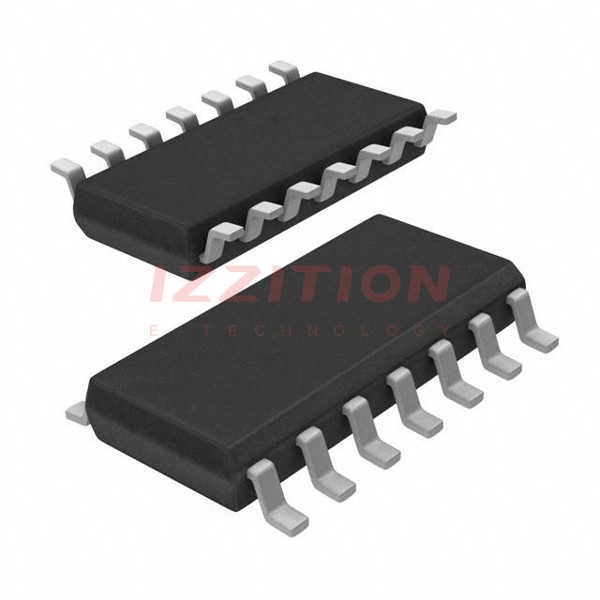

| Package Type | 14-SO (Small Outline) |
| Number of Transceivers | 1 |
| Communication Protocol | CANbus |
| Operating Voltage | 4.75V to 5.25V DC |
| Data Rate | Up to 1 Mbps |
| Operating Temperature | -40°C to 125°C |
Key Features
- CANbus Compliance: The AU5790D14,512 is fully compliant with the CAN 2.0B and ISO 11898-2 standards, ensuring reliable communication in various applications.
- High Data Rate: Supports data rates up to 1 Mbps, making it suitable for high-speed communication needs.
- Low Power Consumption: Designed to operate efficiently with low power consumption, which is crucial for battery-powered and energy-sensitive applications.
- Robust Protection: Includes built-in protection mechanisms such as overvoltage protection, short-circuit protection, and electromagnetic interference (EMI) protection to ensure reliable operation in harsh environments.
Applications
- Automotive Systems: Used in vehicle networks for communication between different electronic control units (ECUs), such as engine control, transmission control, and safety systems.
- Industrial Automation: Employed in industrial control systems, robotics, and other automation applications where reliable and high-speed data communication is necessary.
- Medical Devices: Can be used in medical devices that require reliable and secure data communication, such as patient monitoring systems and medical imaging equipment.
Q & A
- What is the primary function of the AU5790D14,512? The primary function is to act as a CANbus transceiver, facilitating communication between devices in a network.
- What is the operating voltage range of the AU5790D14,512? The operating voltage range is 4.75V to 5.25V DC.
- What is the maximum data rate supported by the AU5790D14,512? The maximum data rate supported is up to 1 Mbps.
- What kind of protection does the AU5790D14,512 offer? It offers overvoltage protection, short-circuit protection, and EMI protection.
- In which applications is the AU5790D14,512 commonly used? It is commonly used in automotive systems, industrial automation, and medical devices.
- What is the package type of the AU5790D14,512? The package type is 14-SO (Small Outline).
- Is the AU5790D14,512 compliant with any specific standards? Yes, it is compliant with the CAN 2.0B and ISO 11898-2 standards.
- What is the operating temperature range of the AU5790D14,512? The operating temperature range is -40°C to 125°C.
- Why is low power consumption important for the AU5790D14,512? Low power consumption is important for battery-powered and energy-sensitive applications to ensure long battery life and efficient operation.
- Can the AU5790D14,512 be used in harsh environments? Yes, it includes built-in protection mechanisms to ensure reliable operation in harsh environments.
