AU5790D14,518
  • Share:

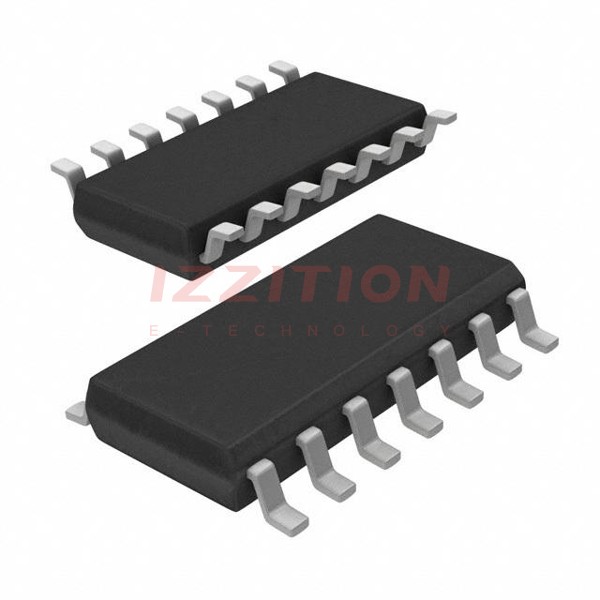

NXP USA Inc. AU5790D14,518

Manufacturer No:
AU5790D14,518
Manufacturer:
NXP USA Inc.
Package:
Tape & Reel (TR)
Description:
IC TRANSCEIVER 1/1 14SO
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The AU5790D14,518 is a CAN (Controller Area Network) transceiver IC produced by NXP USA Inc. This component is designed to facilitate communication in CAN bus systems, which are commonly used in automotive and industrial applications. The AU5790D14,518 is part of NXP's extensive range of interface and communication solutions, ensuring reliable and efficient data transmission.

Key Specifications

Parameter Value
Package Type 14-SOIC
Interface Type CAN (Controller Area Network)
Number of Transceivers 1
Supply Voltage Typically 4.75 to 5.25 VDC (though specific voltage range may vary, it is generally compatible with standard CAN bus voltage requirements)
Operating Temperature Typically -40°C to 125°C (though exact range may vary, it is designed for automotive and industrial use)
Data Rate Up to 1 Mbps

Key Features

  • Reliable CAN Bus Communication: The AU5790D14,518 ensures robust and reliable communication over the CAN bus, making it suitable for demanding automotive and industrial environments.
  • Compact 14-SOIC Package: The component is packaged in a compact 14-SOIC format, making it easy to integrate into various designs.
  • High Data Rate: Supports data rates up to 1 Mbps, meeting the requirements of high-speed CAN bus applications.
  • Wide Operating Temperature Range: Designed to operate over a wide temperature range, making it suitable for use in harsh environments.

Applications

  • Automotive Systems: Used in vehicle networks for communication between various control units, such as engine control units, transmission control units, and body control modules.
  • Industrial Automation: Employed in industrial control systems, robotics, and other automation equipment that require reliable and high-speed communication.
  • Embedded Systems: Suitable for use in embedded systems that need to communicate over CAN bus, such as in medical devices, aerospace, and other critical applications.

Q & A

  1. What is the AU5790D14,518 used for?

    The AU5790D14,518 is a CAN transceiver IC used for facilitating communication in CAN bus systems, commonly found in automotive and industrial applications.

  2. What is the package type of the AU5790D14,518?

    The AU5790D14,518 is packaged in a 14-SOIC format.

  3. What is the typical operating voltage range for the AU5790D14,518?

    The typical operating voltage range is 4.75 to 5.25 VDC.

  4. What is the maximum data rate supported by the AU5790D14,518?

    The AU5790D14,518 supports data rates up to 1 Mbps.

  5. What are the common applications of the AU5790D14,518?

    Common applications include automotive systems, industrial automation, and embedded systems that require CAN bus communication.

  6. Is the AU5790D14,518 still in production?

    No, the AU5790D14,518 is no longer manufactured. Users should consider alternative package types or components.

  7. What is the operating temperature range of the AU5790D14,518?

    The component is designed to operate over a wide temperature range, typically from -40°C to 125°C.

  8. How does the AU5790D14,518 ensure reliable communication?

    The AU5790D14,518 ensures reliable communication through its robust design and compliance with CAN bus standards, making it suitable for demanding environments.

  9. Can the AU5790D14,518 be used in harsh environments?

    Yes, the component is designed to operate in harsh environments due to its wide operating temperature range and robust construction.

  10. What are some alternatives if the AU5790D14,518 is no longer available?

    Users should consult the manufacturer's website or distributors for alternative CAN transceiver ICs that meet similar specifications and requirements.

Product Attributes

Type:Transceiver
Protocol:CANbus
Number of Drivers/Receivers:1/1
Duplex:-
Receiver Hysteresis:-
Data Rate:-
Voltage - Supply:5.3V ~ 27V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:14-SOIC (0.154", 3.90mm Width)
Supplier Device Package:14-SO
0 Remaining View Similar

In Stock

$1.16
71

Please send RFQ , we will respond immediately.

Same Series
AU5790D14/N,112
AU5790D14/N,112
IC TRANSCEIVER 1/1 14SO
AU5790D/N,118
AU5790D/N,118
IC TRANSCEIVER 1/1 8SO
AU5790D14,512
AU5790D14,512
IC TRANSCEIVER 1/1 14SO
AU5790D14/N,118
AU5790D14/N,118
IC TRANSCEIVER 1/1 14SO
AU5790D14,518
AU5790D14,518
IC TRANSCEIVER 1/1 14SO
AU5790D,118
AU5790D,118
IC TRANSCEIVER 1/1 8SO

Similar Products

Part Number AU5790D14,518 AU5790D14,512
Manufacturer NXP USA Inc. NXP USA Inc.
Product Status Obsolete Obsolete
Type Transceiver Transceiver
Protocol CANbus CANbus
Number of Drivers/Receivers 1/1 1/1
Duplex - -
Receiver Hysteresis - -
Data Rate - -
Voltage - Supply 5.3V ~ 27V 5.3V ~ 27V
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C
Mounting Type Surface Mount Surface Mount
Package / Case 14-SOIC (0.154", 3.90mm Width) 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package 14-SO 14-SO
