Overview
The 74HC86D/C118, produced by NXP USA Inc., is a quad 2-input EXCLUSIVE-OR gate. This integrated circuit is part of the 74HC series, known for its CMOS low power dissipation and high noise immunity. The device is designed to operate over a wide supply voltage range from 2.0 V to 6.0 V, making it versatile for various electronic applications. The 74HC86D/C118 features four independent 2-input EXCLUSIVE-OR gates, each with clamp diodes on the inputs, allowing the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | fmax (MHz) | Nr of bits | Power dissipation considerations | Tamb (°C) | Rth(j-a) (K/W) | Ψth(j-top) (K/W) | Rth(j-c) (K/W) | Package name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 74HC86D | 2.0 - 6.0 | CMOS | ± 5.2 | 11 | 36 | 4 | low | -40 ~ 125 | 109 | 20.5 | 67 | SO14 (SOT108-1) |
Key Features
- Wide supply voltage range from 2.0 V to 6.0 V.
- CMOS low power dissipation.
- High noise immunity.
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
- Inputs include clamp diodes, enabling the use of current limiting resistors to interface inputs to voltages in excess of VCC.
- ESD protection: HBM (ANSI/ESDA/JEDEC JS-001 class 2) exceeds 2000 V, CDM (ANSI/ESDA/JEDEC JS-002 class C3) exceeds 1000 V.
- Complies with JEDEC standards.
Applications
The 74HC86D/C118 is suitable for a variety of digital logic applications, including:
- Digital logic circuits requiring EXCLUSIVE-OR operations.
- Interface circuits where voltage levels need to be managed.
- Low power consumption applications such as battery-powered devices.
- High noise immunity environments where reliable signal processing is crucial.
Q & A
- What is the primary function of the 74HC86D/C118?
The primary function of the 74HC86D/C118 is to perform EXCLUSIVE-OR operations on four independent 2-input gates.
- What is the supply voltage range for the 74HC86D/C118?
The supply voltage range for the 74HC86D/C118 is from 2.0 V to 6.0 V.
- What type of logic switching levels does the 74HC86D/C118 support?
The 74HC86D/C118 supports CMOS logic switching levels.
- What is the output drive capability of the 74HC86D/C118?
The output drive capability of the 74HC86D/C118 is ± 5.2 mA.
- What is the maximum propagation delay (tpd) of the 74HC86D/C118?
The maximum propagation delay (tpd) of the 74HC86D/C118 is 11 ns.
- What is the maximum frequency (fmax) of the 74HC86D/C118?
The maximum frequency (fmax) of the 74HC86D/C118 is 36 MHz.
- What kind of ESD protection does the 74HC86D/C118 have?
The 74HC86D/C118 has ESD protection: HBM (ANSI/ESDA/JEDEC JS-001 class 2) exceeds 2000 V, CDM (ANSI/ESDA/JEDEC JS-002 class C3) exceeds 1000 V.
- What is the operating temperature range for the 74HC86D/C118?
The operating temperature range for the 74HC86D/C118 is from -40 °C to +125 °C.
- What package type is the 74HC86D/C118 available in?

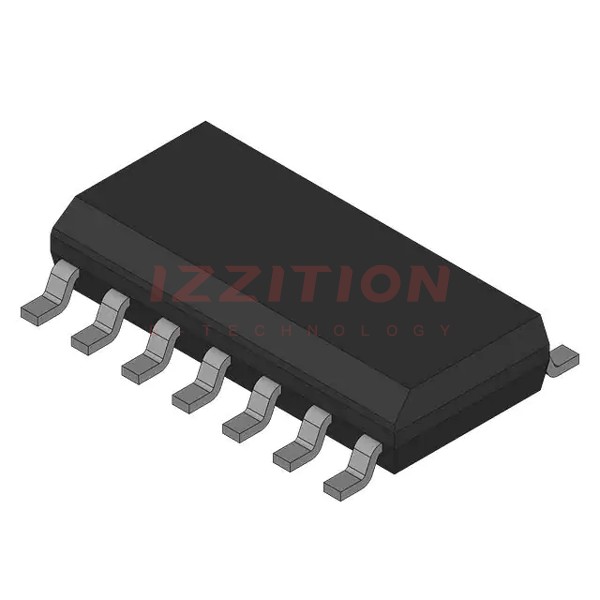

The 74HC86D/C118 is available in a SO14 (SOT108-1) package.
- Does the 74HC86D/C118 comply with any industry standards?
Yes, the 74HC86D/C118 complies with JEDEC standards.
