Overview
The 74HC251D-Q100 is an 8-bit multiplexer integrated circuit produced by Nexperia, which was previously part of NXP Semiconductors. This device features eight binary inputs (I0 to I7), three select inputs (S0 to S2), and an output enable input (OE). It is designed to select one of the eight binary inputs and route it to the complementary outputs (Y and Y'). A HIGH on the OE input causes the outputs to assume a high-impedance OFF-state. This component is widely used in various electronic systems due to its versatility and robust specifications.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | Power dissipation considerations | Tamb (°C) | Rth(j-a) (K/W) | Ψth(j-top) (K/W) | Rth(j-c) (K/W) | Package name |
|---|---|---|---|---|---|---|---|---|---|---|
| 74HC251D-Q100 | 2.0 - 6.0 | CMOS | ± 5.2 | 18 | Low | -40 to +125 | 80 | 4.1 | 38 | SO16 (SOT109-1) |
Key Features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards for input levels (CMOS for 74HC251, TTL for 74HCT251)
- Non-inverting data path
- ESD protection: HBM exceeds 2000 V, CDM exceeds 1000 V
- Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Applications
The 74HC251D-Q100 is suitable for a wide range of applications across various industries, including:
- Automotive systems
- Industrial control systems
- Power management systems
- Computing and consumer electronics
- Mobile and wearable devices
Q & A
- What is the function of the 74HC251D-Q100? The 74HC251D-Q100 is an 8-bit multiplexer that selects one of eight binary inputs and routes it to the output based on the select inputs.
- What is the supply voltage range for the 74HC251D-Q100? The supply voltage range is from 2.0 V to 6.0 V.
- What are the logic switching levels for the 74HC251D-Q100? The logic switching levels are CMOS for the 74HC251 and TTL for the 74HCT251.
- What is the output drive capability of the 74HC251D-Q100? The output drive capability is ± 5.2 mA.
- What is the operating temperature range for the 74HC251D-Q100? The operating temperature range is from -40 °C to +125 °C.
- Does the 74HC251D-Q100 have ESD protection? Yes, it has ESD protection with HBM exceeding 2000 V and CDM exceeding 1000 V.
- Is the 74HC251D-Q100 qualified for automotive applications? Yes, it is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1).

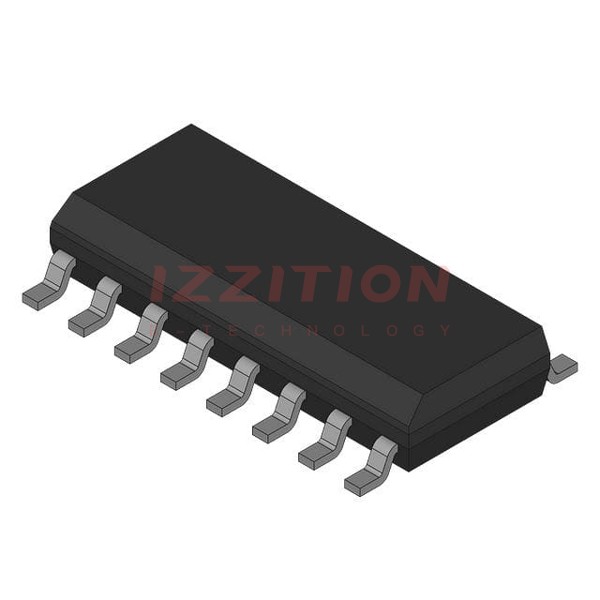

- What package type is the 74HC251D-Q100 available in? It is available in the SO16 (SOT109-1) package.
- What are the key industries where the 74HC251D-Q100 is used? It is used in automotive, industrial, power management, computing, consumer electronics, mobile, and wearable devices.
- Does the 74HC251D-Q100 comply with any specific standards? Yes, it complies with JEDEC standards and has latch-up performance exceeding 100 mA per JESD 78 Class II Level B.
