Overview

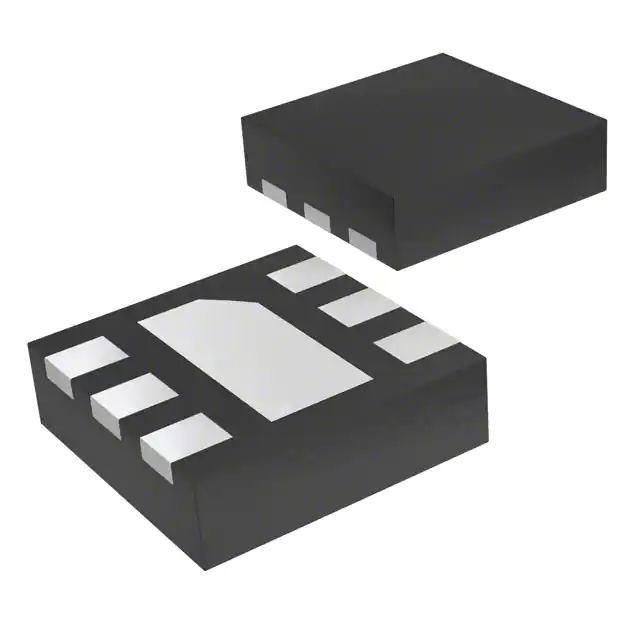

The PUSBM12VX4-TL,115 is a high-speed USB 2.0 On-The-Go (OTG) ElectroStatic Discharge (ESD) protection diode array produced by Nexperia USA Inc. This component is designed to provide robust protection for USB interfaces against ESD voltages, ensuring the reliability and longevity of downstream components. It is encapsulated in an ultra-thin DFN1616-6 (SOT1189-1/XSON6) plastic package, making it ideal for applications requiring component miniaturization.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Voltage - Reverse Standoff (Typ) | 5.5 | V |
| Voltage - Clamping (Max) @ Ipp | 12 | V |
| Voltage - Breakdown (Min) | 12.5 | V |
| Number of Channels | 4 | |
| Polarity | Unidirectional | |
| Package / Case | 6-DFN1616 (1.6x1.6) | |
| Operating Temperature | -30°C to 85°C | °C |
| Peak Pulse Current (10/1000µs) | 3 A | A |
| Diode Capacitance | 73 - 100 pF | pF |
| Reverse Leakage Current | 1 - 100 nA | nA |
Key Features
- Pb-free, RoHS, and Dark Green compliant
- ESD protection according to IEC 61000-4-2 level 4: ±8 kV contact discharge
- Electrical Fast Transients (EFT) protection according to IEC 61000-4-4 40A (5/50 ns)
- Three pairs of ultra-low capacitance (1.1 pF typ.) rail-to-rail ESD protection diodes
- Ultra-thin DFN1616-6 (SOT1189-1/XSON6) plastic package with 0.5 mm pitch
Applications
- High-speed USB 2.0 and USB OTG connector ESD protection
- Cellular phone and Personal Communication System (PCS) mobile handsets
- Mobile internet devices
- Digital still cameras
- Portable media players
Q & A
- What is the primary function of the PUSBM12VX4-TL,115? The primary function is to provide ESD protection for high-speed USB 2.0 and USB OTG interfaces.
- What is the maximum ESD protection voltage for this component? The component provides ESD protection up to ±8 kV contact discharge.
- What type of package does the PUSBM12VX4-TL,115 use? It is encapsulated in an ultra-thin DFN1616-6 (SOT1189-1/XSON6) plastic package.
- What is the operating temperature range for this component? The operating temperature range is -30°C to 85°C.
- How many channels does the PUSBM12VX4-TL,115 have? It has 4 channels.
- What is the typical diode capacitance of the PUSBM12VX4-TL,115? The typical diode capacitance is 73 - 100 pF.
- Is the PUSBM12VX4-TL,115 RoHS compliant? Yes, it is Pb-free, RoHS, and Dark Green compliant.
- What are some common applications for the PUSBM12VX4-TL,115? Common applications include cellular phones, mobile internet devices, digital still cameras, and portable media players.
- What is the peak pulse current rating for the PUSBM12VX4-TL,115? The peak pulse current rating is 3 A (10/1000µs).
- What is the reverse leakage current of the PUSBM12VX4-TL,115? The reverse leakage current is 1 - 100 nA.
