Overview

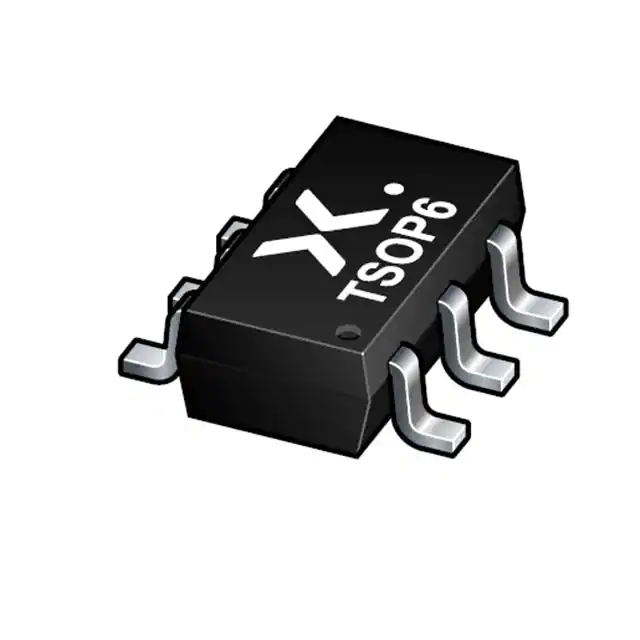

The PUSB2X4DH is a Transient Voltage Suppressor (TVS) diode produced by Nexperia USA Inc. This component is designed to provide robust protection against Electrostatic Discharge (ESD) and other transient voltage events, ensuring the integrity and reliability of high-speed signal lines in various electronic systems.
Key Specifications
| Parameter | Value |
|---|---|
| Type | TVS Diode |
| Package | SC-74, SOT-457 |
| Operating Temperature | -40°C to 85°C (TA) |
| VESD IEC61000-4-2 | Typically 15 kV |
| Configuration | Bidirectional |
| Status | Obsolete and no longer manufactured |
Key Features
- Provides robust ESD protection for high-speed signal lines.
- Bidirectional configuration for comprehensive protection.
- Compact SC-74 and SOT-457 package options.
- Operates within a wide temperature range of -40°C to 85°C.
Applications
The PUSB2X4DH is suitable for various applications requiring ESD protection, including consumer electronics, industrial equipment, and any system that relies on the integrity of high-speed signal lines.
Q & A
- What is the PUSB2X4DH used for?
The PUSB2X4DH is used to provide ESD protection for high-speed signal lines in electronic systems. - What is the operating temperature range of the PUSB2X4DH?
The operating temperature range is -40°C to 85°C (TA). - What package types are available for the PUSB2X4DH?
The component is available in SC-74 and SOT-457 packages. - Is the PUSB2X4DH still in production?
No, the PUSB2X4DH is obsolete and no longer manufactured. - What are the key features of the PUSB2X4DH?
Key features include bidirectional configuration, robust ESD protection, and a wide operating temperature range. - Where can I find substitutes for the PUSB2X4DH?
You can find available substitutes on distributors' websites such as DigiKey. - What are the typical VESD IEC61000-4-2 values for the PUSB2X4DH?
Typically 15 kV. - How does the PUSB2X4DH protect against ESD events?
The component protects against ESD events through its bidirectional TVS diode configuration. - What are some common applications for the PUSB2X4DH?
Common applications include consumer electronics and industrial equipment requiring high-speed signal line protection. - Where can I find detailed specifications and datasheets for the PUSB2X4DH?
You can find detailed specifications and datasheets on the Nexperia website or through authorized distributors.
