Overview
The PTVS5V5D1BLYL, manufactured by Nexperia USA Inc., is an ultra-compact transient voltage suppressor (TVS) diode designed to provide robust protection against transient voltage spikes and electrostatic discharges (ESD). This component is optimized for high-performance applications, particularly in automotive, consumer, and computing devices. With its innovative design and high-quality materials, the PTVS5V5D1BLYL sets a high standard for reliability and durability in demanding environments.
Key Specifications
| Type number | Package name | Configuration | Nr of protected lines | VBR [typ] (V) | IPPM @8/20 µs [max] (A) | VESD IEC61000-4-2 (kV) | IRM [max] (µA) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|
| PTVS5V5D1BL | DFN1006-2 (SOD882) | Bidirectional | 1 | - | - | 30 | - | 150 |
Orderable part number: PTVS5V5D1BLYL

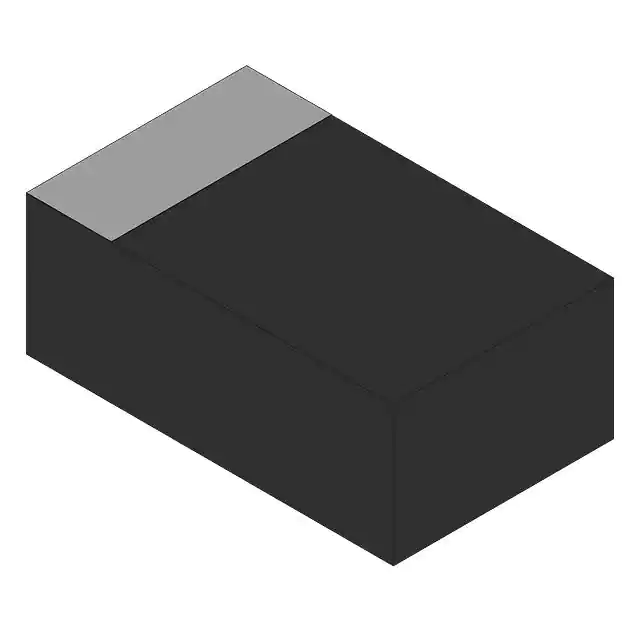

Package/Case: DFN1006-2 (SOD882)
RoHS: True
RHF-indicator: True
Key Features
- Optimized for high-speed data transfer
- Real-time data processing capabilities
- Enhanced security features
- Simplified system integration
- Advanced error detection and correction
- Very low clamping voltage: VCL = 10.5 V typ. for 34 A, 8/20 µs pulse
- ESD protection up to 30 kV
- Very low dynamical resistance Rdyn = 0.07 Ω (TLP)
- AEC-Q101 qualified
Applications
- Input/output devices
- Sim card slots
- Touchscreen monitors
- Supply and battery lines
- Audio interfaces
- Portable communication, consumer, and computing devices
Q & A
- What is the primary function of the PTVS5V5D1BLYL?
The primary function of the PTVS5V5D1BLYL is to provide transient voltage suppression and ESD protection in electronic circuits.
- What package type does the PTVS5V5D1BLYL come in?
The PTVS5V5D1BLYL comes in a DFN1006-2 (SOD882) package.
- Is the PTVS5V5D1BLYL RoHS compliant?
Yes, the PTVS5V5D1BLYL is RoHS compliant.
- What is the maximum junction temperature for the PTVS5V5D1BLYL?
The maximum junction temperature for the PTVS5V5D1BLYL is 150°C.
- What kind of ESD protection does the PTVS5V5D1BLYL offer?
The PTVS5V5D1BLYL offers ESD protection up to 30 kV.
- Is the PTVS5V5D1BLYL suitable for automotive applications?
Yes, the PTVS5V5D1BLYL is AEC-Q101 qualified, making it suitable for automotive applications.
- What are some common applications for the PTVS5V5D1BLYL?
Common applications include input/output devices, sim card slots, touchscreen monitors, supply and battery lines, and audio interfaces.
- What is the clamping voltage of the PTVS5V5D1BLYL?
The clamping voltage (VCL) is 10.5 V typ. for a 34 A, 8/20 µs pulse.
- How does the PTVS5V5D1BLYL enhance system integration?
The PTVS5V5D1BLYL simplifies system integration due to its compact package and advanced features such as low dynamical resistance and high-speed data transfer capabilities.
- What is the dynamical resistance of the PTVS5V5D1BLYL?
The dynamical resistance (Rdyn) of the PTVS5V5D1BLYL is 0.07 Ω (TLP).
