Overview

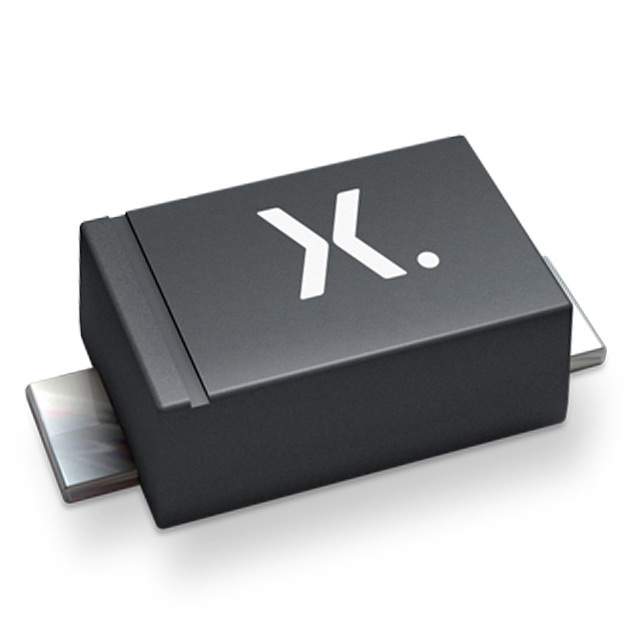

The PTVS33VS1UR/8X is a Transient Voltage Suppressor (TVS) diode manufactured by Nexperia USA Inc. This component is designed to provide protection against voltage spikes and transient events in electronic circuits. It is particularly useful in applications where high reliability and robust protection are essential.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage - Working (VWM) | 33 V |
| Voltage - Clamping (VC) | 53.3 V |
| Power - Peak Pulse | 400 W |
| Package | SOD-123W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | Not specified, but typically around the working voltage |
Key Features
- High peak pulse power rating of 400 W, providing robust protection against transient voltage spikes.
- Unidirectional protection, suitable for applications where a single direction of current flow needs to be protected.
- Compact SOD-123W package, ideal for space-constrained designs.
- Designed to operate within a working voltage of 33 V, ensuring reliable performance in various applications.
Applications
The PTVS33VS1UR/8X is suitable for a variety of applications, including:
- Power supplies and DC-DC converters to protect against voltage transients.
- Automotive systems, such as infotainment and navigation systems, to ensure robust protection against electrical surges.
- Industrial control systems and automation equipment to safeguard against transient voltages.
- Consumer electronics, such as smartphones and laptops, to protect sensitive components from voltage spikes.
Q & A
- What is the peak pulse power rating of the PTVS33VS1UR/8X?
The peak pulse power rating is 400 W. - What is the working voltage (VWM) of this TVS diode?
The working voltage is 33 V. - What is the clamping voltage (VC) of the PTVS33VS1UR/8X?
The clamping voltage is 53.3 V. - What package type is used for the PTVS33VS1UR/8X?
The package type is SOD-123W. - Is the PTVS33VS1UR/8X a unidirectional or bidirectional TVS diode?
It is a unidirectional TVS diode. - What are some common applications for the PTVS33VS1UR/8X?
Common applications include power supplies, automotive systems, industrial control systems, and consumer electronics. - Who is the manufacturer of the PTVS33VS1UR/8X?
The manufacturer is Nexperia USA Inc. - What is the purpose of using a TVS diode like the PTVS33VS1UR/8X in electronic circuits?
The purpose is to protect against voltage spikes and transient events. - How does the PTVS33VS1UR/8X protect against transient voltages?
It clamps the voltage to a safe level, preventing damage to other components in the circuit. - Where can I purchase the PTVS33VS1UR/8X?
You can purchase it from distributors like Mouser, Digi-Key, and other authorized suppliers.
