Overview

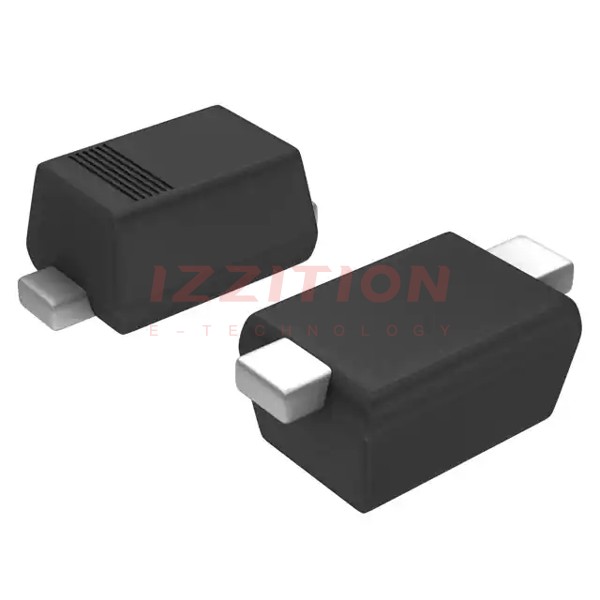

The PESD5V0X1UB,135 is a transient voltage suppressor (TVS) diode manufactured by Nexperia USA Inc. This ultra-low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode is designed to provide efficient operation with low clamping voltage and fast response times. It is packaged in a SOD523 (SC-79) ultra-small and flat lead package, making it ideal for space-constrained applications.
Key Specifications
| Parameter | Value |
|---|---|
| Working Voltage | 5 V |
| Package Type | SOD523 (SC-79) |
| Capacitance | Ultra low |
| Clamping Voltage | Ultra low |
| Response Time | Fast |
| Polarity | Unidirectional |
Key Features
The PESD5V0X1UB,135 features ultra-low capacitance, which is crucial for maintaining signal integrity in high-speed data lines. It also has an ultra-low clamping voltage, ensuring minimal impact on the signal during ESD events. The device is housed in an ultra-small and flat lead SOD523 package, making it suitable for applications where space is limited. Additionally, its fast response time ensures effective protection against transient voltage spikes.
Applications
The PESD5V0X1UB,135 is particularly suited for high-speed data line protection applications. Its ultra-low capacitance and clamping voltage make it ideal for use in USB, HDMI, and other high-speed interfaces where signal integrity is critical. It is also applicable in various consumer electronics, automotive, and industrial devices that require robust ESD protection.
Q & A
- What is the working voltage of the PESD5V0X1UB,135?
The working voltage of the PESD5V0X1UB,135 is 5 V. - What type of package does the PESD5V0X1UB,135 use?
The PESD5V0X1UB,135 is packaged in a SOD523 (SC-79) ultra-small and flat lead package. - What are the key features of the PESD5V0X1UB,135?
The key features include ultra-low capacitance, ultra-low clamping voltage, and fast response time. - What applications is the PESD5V0X1UB,135 suited for?
It is suited for high-speed data line protection applications such as USB, HDMI, and other high-speed interfaces. - Why is the PESD5V0X1UB,135 important for signal integrity?
Its ultra-low capacitance ensures minimal impact on signal integrity in high-speed data lines. - What is the polarity of the PESD5V0X1UB,135?
The PESD5V0X1UB,135 is a unidirectional TVS diode. - How does the PESD5V0X1UB,135 protect against ESD events?
It protects against ESD events with its ultra-low clamping voltage and fast response time. - What are the benefits of the ultra-small package of the PESD5V0X1UB,135?
The ultra-small package makes it suitable for space-constrained applications. - Can the PESD5V0X1UB,135 be used in automotive applications?
Yes, it can be used in automotive and industrial devices that require robust ESD protection. - Where can I find more detailed specifications for the PESD5V0X1UB,135?
You can find detailed specifications on the official Nexperia website or through distributors like Digi-Key and Arrow Electronics.
