Overview

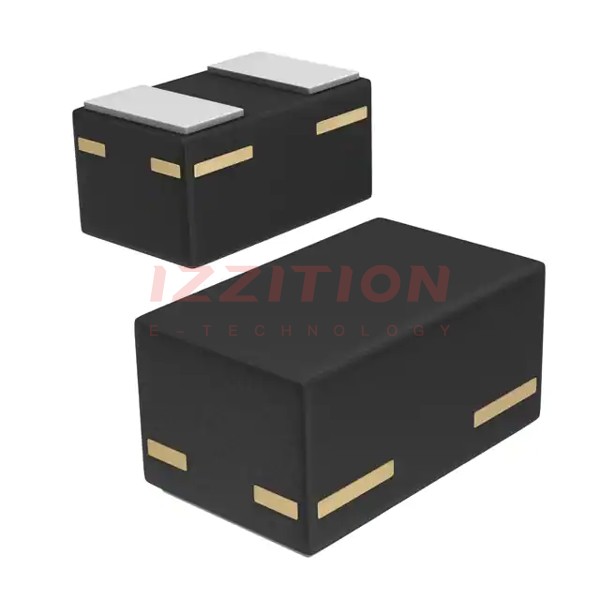

The PESD3V3X1BL,315 is an ESD (Electrostatic Discharge) protection diode manufactured by Nexperia USA Inc. This component is designed to protect electronic circuits from damage caused by ESD and other transient voltage events. It is part of the Automotive series and complies with the AEC-Q101 standard, ensuring high reliability and performance in automotive applications. The device is packaged in a DFN1006-2 (SOD-882) package, which is suitable for surface mount technology.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Type | ESD Protection Diode |
| Series | Automotive, AEC-Q101 |
| Package / Case | DFN1006-2 (SOD-882) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TA) |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 5V |
| Capacitance @ Frequency | 1.3pF @ 1MHz |
| Bidirectional Channels | 1 |
| Power Line Protection | No |
Key Features
- Provides excellent clamping characteristics and surge robustness, with a typical surge current of 38.3A (8/20 μs pulse).
- Designed to protect two automotive in-vehicle network bus lines from ESD and other transient voltage events.
- Complies with the AEC-Q101 standard, ensuring high reliability and performance in automotive applications.
- Compact DFN1006-2 (SOD-882) package suitable for surface mount technology.
- Wide operating temperature range of -55°C to 150°C.
Applications
The PESD3V3X1BL,315 is primarily used in automotive applications to protect electronic circuits from ESD and other transient voltage events. It is particularly suited for protecting in-vehicle network bus lines, ensuring the reliability and integrity of automotive electronic systems.
Q & A
- What is the primary function of the PESD3V3X1BL,315?
The primary function of the PESD3V3X1BL,315 is to protect electronic circuits from damage caused by ESD and other transient voltage events.
- Which standard does the PESD3V3X1BL,315 comply with?
The PESD3V3X1BL,315 complies with the AEC-Q101 standard.
- What is the package type of the PESD3V3X1BL,315?
The PESD3V3X1BL,315 is packaged in a DFN1006-2 (SOD-882) package.
- What is the operating temperature range of the PESD3V3X1BL,315?
The operating temperature range is -55°C to 150°C.
- What is the typical surge robustness of the PESD3V3X1BL,315?
The typical surge robustness is 38.3A (8/20 μs pulse).
- What type of mounting does the PESD3V3X1BL,315 use?
The PESD3V3X1BL,315 uses surface mount technology.
- What is the capacitance of the PESD3V3X1BL,315 at 1 MHz?
The capacitance is 1.3 pF at 1 MHz.
- Is the PESD3V3X1BL,315 bidirectional?
Yes, the PESD3V3X1BL,315 has one bidirectional channel.
- Does the PESD3V3X1BL,315 provide power line protection?
No, the PESD3V3X1BL,315 does not provide power line protection.
- In which applications is the PESD3V3X1BL,315 commonly used?
The PESD3V3X1BL,315 is commonly used in automotive applications to protect in-vehicle network bus lines.
