Overview

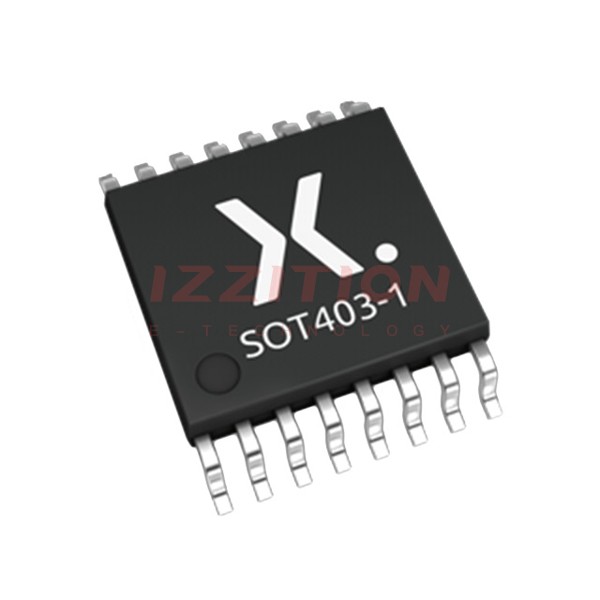

The CBT3251PW,112 is a dual 2-to-4 line decoder/demultiplexer integrated circuit produced by Nexperia USA Inc. This component is part of Nexperia's extensive portfolio of logic ICs, designed to meet the needs of various electronic systems. However, it is important to note that the CBT3251PW,112 is currently listed as obsolete and no longer manufactured by Nexperia.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | TSSOP14 |
| Logic Family | CBT |
| Number of Channels | 2 |
| Number of Inputs | 4 |
| Number of Outputs | 8 |
| Supply Voltage | 4.5 V to 5.5 V |
| Operating Temperature Range | -40°C to 125°C |
| Mounting Type | Surface Mount |
Key Features
The CBT3251PW,112 features a dual 2-to-4 line decoder/demultiplexer function, making it suitable for applications requiring signal routing and decoding. Key features include:
- Dual 2-to-4 line decoder/demultiplexer
- Low power consumption
- High speed operation
- Compliant with JEDEC standard JESD7A
- ESD protection on all pins
Applications
The CBT3251PW,112 is designed for use in a variety of applications, including:
- Telecommunications
- Consumer electronics
- Industrial control systems
- Automotive electronics
- Data communication systems
Q & A
- What is the package type of the CBT3251PW,112?
The package type is TSSOP14. - Is the CBT3251PW,112 still in production?
No, the CBT3251PW,112 is listed as obsolete and no longer manufactured by Nexperia. - What is the supply voltage range for the CBT3251PW,112?
The supply voltage range is 4.5 V to 5.5 V. - What are the operating temperature ranges for this IC?
The operating temperature range is -40°C to 125°C. - What type of logic family does the CBT3251PW,112 belong to?
The CBT3251PW,112 belongs to the CBT logic family. - How many channels does the CBT3251PW,112 have?
The CBT3251PW,112 has 2 channels. - What is the number of inputs and outputs for each channel?
Each channel has 2 inputs and 4 outputs. - Does the CBT3251PW,112 have ESD protection?
Yes, the CBT3251PW,112 has ESD protection on all pins. - What are some common applications for the CBT3251PW,112?
Common applications include telecommunications, consumer electronics, industrial control systems, automotive electronics, and data communication systems. - What is the mounting type for the CBT3251PW,112?
The mounting type is surface mount.
