Overview

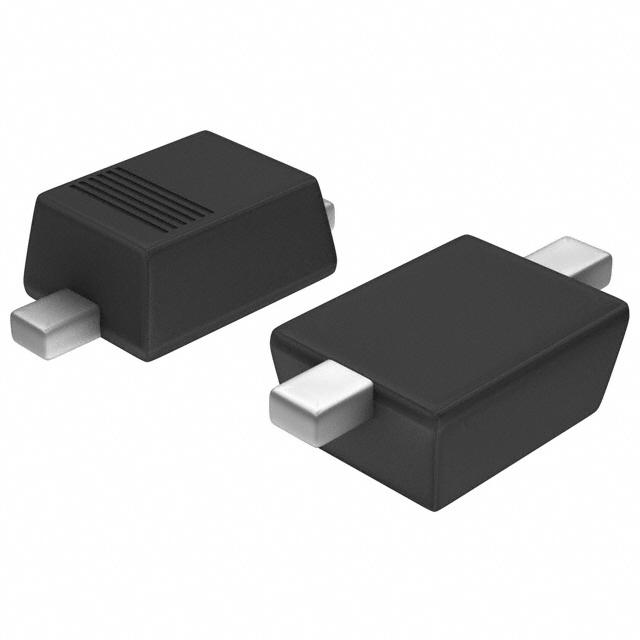

The BZX84J-C12F is a low-power voltage regulator diode produced by Nexperia USA Inc. This component is part of the BZX84J series, which is designed to provide stable voltage regulation in a variety of electronic applications. The diode is packaged in a small SOD323F (SC-90) surface-mount device (SMD) package, making it suitable for compact and efficient designs.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Voltage - Zener (Nominal) | 12 | V |
| Voltage - Forward (Max) @ If | 1.1 @ 100mA | V |
| Tolerance | ±5% | |
| Power - Max | 550 | mW |
| Operating Temperature | -65°C to 150°C | °C |
| Mounting Type | Surface Mount | |
| Impedance (Max) (Zzt) | 10 | Ohm |
| Current - Reverse Leakage @ Vr | 100nA @ 8V | |
| Package / Case | SOD-323F (SC-90) |
Key Features
- Low Power Consumption: The BZX84J-C12F has a maximum power dissipation of 550 mW, making it suitable for low-power applications.
- Precision Voltage Regulation: Available in a ±5% tolerance range, ensuring stable voltage regulation.
- Compact Package: The SOD323F package is small and surface-mountable, ideal for space-constrained designs.
- Broad Operating Temperature Range: Operates from -65°C to 150°C, making it versatile for various environmental conditions.
- Compliance with Regulations: Compliant with EU RoHS, CN RoHS, and ELV directives, ensuring environmental sustainability and regulatory compliance.
Applications
The BZX84J-C12F is used in a wide range of applications across various industries, including:
- Automotive Electronics: For voltage regulation in automotive systems, improving safety and efficiency.
- Industrial Electronics: In Uninterruptible Power Supply (UPS) systems, motor drives, and other industrial equipment.
- Consumer Electronics: In mobile devices, wearables, and other consumer electronics requiring stable voltage regulation.
- Power and Computing: In power supplies, computing systems, and other applications requiring reliable voltage regulation.
Q & A
- What is the nominal zener voltage of the BZX84J-C12F?
The nominal zener voltage is 12 V.
- What is the maximum power dissipation of the BZX84J-C12F?
The maximum power dissipation is 550 mW.
- What is the operating temperature range of the BZX84J-C12F?
The operating temperature range is from -65°C to 150°C.
- What package type is the BZX84J-C12F available in?
The BZX84J-C12F is available in the SOD323F (SC-90) package.
- Is the BZX84J-C12F compliant with EU RoHS and CN RoHS regulations?
Yes, it is compliant with both EU RoHS and CN RoHS regulations.
- What is the maximum forward voltage drop at 100 mA for the BZX84J-C12F?
The maximum forward voltage drop at 100 mA is 1.1 V.
- What is the impedance (Zzt) of the BZX84J-C12F?
The impedance (Zzt) is 10 Ohm.
- What is the reverse leakage current at 8 V for the BZX84J-C12F?
The reverse leakage current at 8 V is 100 nA.
- Is the BZX84J-C12F suitable for surface mounting?
Yes, it is designed for surface mounting.
- What are some common applications of the BZX84J-C12F?
Common applications include automotive electronics, industrial electronics, consumer electronics, and power and computing systems.
