Overview

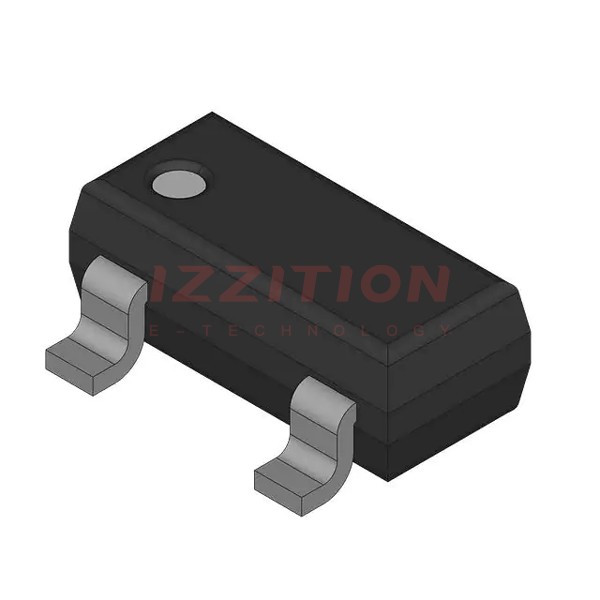

The BZX84-B3V6235 is a Zener diode produced by Nexperia USA Inc. This component is part of the BZX84 series, which is known for its wide range of voltage options and versatile applications. The BZX84-B3V6235 is specifically designed to operate at a voltage of 3.6V, making it suitable for various electronic circuits requiring voltage regulation and protection.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage (V_Z) | 3.6V |
| Tolerance | 5% |
| Power Dissipation (P_D) | 250 mW |
| Operating Temperature Range | -65°C to 150°C |
| Package Type | SOD123, SOD323, or similar |
| Mounting Type | Through-hole or Surface Mount |
Key Features
- Wide operating temperature range from -65°C to 150°C.
- Low leakage current.
- High surge current capability.
- Avalanche ruggedness.
- Available in various package types such as SOD123 and SOD323.
Applications
- Overvoltage protection in electronic circuits.
- General voltage regulation.
- Voltage reference functions.
- Surge protection in power supplies and other electronic devices.
Q & A
- What is the voltage rating of the BZX84-B3V6235 Zener diode?
The BZX84-B3V6235 has a voltage rating of 3.6V. - What is the tolerance of the BZX84-B3V6235 Zener diode?
The tolerance is 5%. - What is the maximum power dissipation of the BZX84-B3V6235?
The maximum power dissipation is 250 mW. - What are the common applications of the BZX84-B3V6235?
Common applications include overvoltage protection, general voltage regulation, and voltage reference functions. - What are the available package types for the BZX84-B3V6235?
The component is available in packages such as SOD123 and SOD323. - What is the operating temperature range of the BZX84-B3V6235?
The operating temperature range is from -65°C to 150°C. - Is the BZX84-B3V6235 suitable for high surge current applications?
Yes, it has high surge current capability. - Can the BZX84-B3V6235 be used for voltage reference functions?
Yes, it can be used for voltage reference functions. - What is the typical mounting type for the BZX84-B3V6235?
The typical mounting types are through-hole and surface mount. - Is the BZX84-B3V6235 available in bulk quantities?
Yes, it is available in bulk quantities.
