Overview
The BZV49-C51,115 is a medium-power voltage regulator diode produced by Nexperia USA Inc. This component is part of the BZV49 series, which offers a wide range of nominal working voltages from 2.4V to 75V. The BZV49-C51,115 specifically operates at a nominal working voltage of 51V, making it suitable for various voltage regulation and protection applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Nominal Working Voltage (VZ) | 51 | V |
| Voltage Tolerance | ±5% | - |
| Total Power Dissipation (Ptot) | 1 | W |
| Continuous Forward Current (IF) | 250 | mA |
| Non-Repetitive Peak Reverse Power Dissipation (PZSM) | 40 | W |
| Storage Temperature (Tstg) | -65 to +150 | °C |
| Junction Temperature (Tj) | - to 150 | °C |
| Package Type | SOT89 | - |
| Package Dimensions | 4.5 x 2.5 x 1.5 mm | - |
Key Features
- Medium-power voltage regulator diode with a nominal working voltage of 51V.
- Voltage tolerance of approximately ±5%.
- Total power dissipation of up to 1 W.
- Continuous forward current of up to 250 mA.
- Non-repetitive peak reverse power dissipation of up to 40 W.

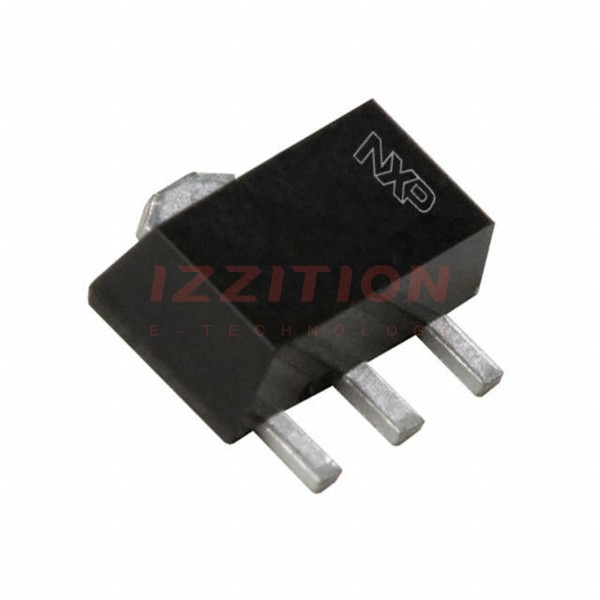

- SOT89 plastic surface-mounted package.
- Wide operating temperature range from -65°C to 150°C.
Applications
The BZV49-C51,115 is designed for various applications including:
- Overvoltage protection.
- General voltage regulation functions.
- Voltage reference functions.
Q & A
- What is the nominal working voltage of the BZV49-C51,115?
The nominal working voltage of the BZV49-C51,115 is 51V. - What is the voltage tolerance of the BZV49-C51,115?
The voltage tolerance is approximately ±5%. - What is the total power dissipation of the BZV49-C51,115?
The total power dissipation is up to 1 W. - What is the continuous forward current of the BZV49-C51,115?
The continuous forward current is up to 250 mA. - What is the non-repetitive peak reverse power dissipation of the BZV49-C51,115?
The non-repetitive peak reverse power dissipation is up to 40 W. - What package type does the BZV49-C51,115 use?
The BZV49-C51,115 uses the SOT89 plastic surface-mounted package. - What are the dimensions of the SOT89 package?
The dimensions of the SOT89 package are 4.5 x 2.5 x 1.5 mm. - What is the storage temperature range for the BZV49-C51,115?
The storage temperature range is from -65°C to +150°C. - What are some common applications of the BZV49-C51,115?
Common applications include overvoltage protection, general voltage regulation functions, and voltage reference functions. - Where can I find more detailed specifications and documentation for the BZV49-C51,115?
You can find detailed specifications and documentation on the official Nexperia website or through authorized distributors like Mouser and Digi-Key.
