BSR19A,215
  • Share:

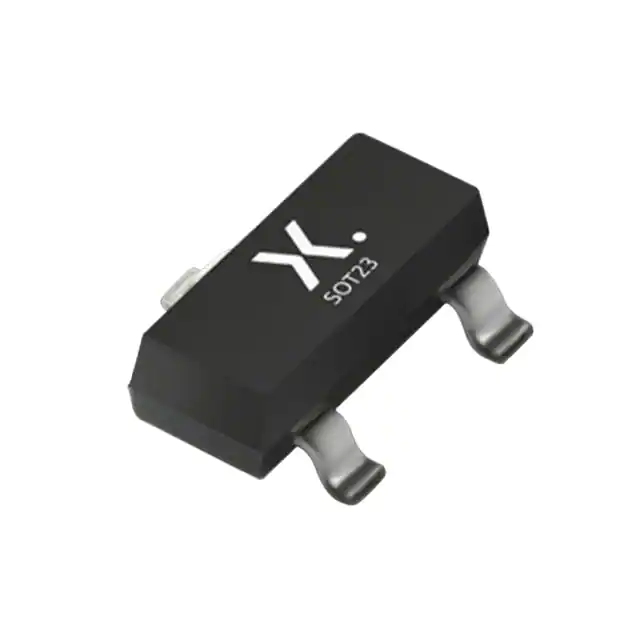

Nexperia USA Inc. BSR19A,215

Manufacturer No:
BSR19A,215
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 160V 0.3A TO236AB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BSR19A,215 is a high-voltage NPN bipolar junction transistor (BJT) manufactured by Nexperia USA Inc. This transistor is housed in a SOT23 plastic package, making it suitable for a variety of applications where high voltage and low current are required. It is part of Nexperia's range of discrete semiconductor products, known for their reliability and performance.

Key Specifications

ParameterValue
Transistor TypeNPN
Package TypeSOT23
Maximum Collector Current300 mA
Maximum Collector-Emitter VoltageHigh Voltage (specific values available in datasheet)
PNP ComplementBSR20 and BSR20A

Key Features

  • Low current capability (max. 300 mA)
  • High voltage handling
  • SOT23 plastic package for compact design
  • PNP complements available (BSR20 and BSR20A)

Applications

The BSR19A,215 transistor is suitable for various high-voltage applications, including but not limited to:

  • Power switching and amplification
  • High-voltage signal processing
  • Automotive and industrial control systems
  • Consumer electronics requiring high voltage handling

Q & A

  1. What is the transistor type of the BSR19A,215?
    The BSR19A,215 is an NPN bipolar junction transistor.
  2. What is the maximum collector current of the BSR19A,215?
    The maximum collector current is 300 mA.
  3. What is the package type of the BSR19A,215?
    The transistor is housed in a SOT23 plastic package.
  4. What are the PNP complements of the BSR19A,215?
    The PNP complements are BSR20 and BSR20A.
  5. What are some typical applications of the BSR19A,215?
    Typical applications include power switching, high-voltage signal processing, automotive and industrial control systems, and consumer electronics requiring high voltage handling.
  6. Where can I find the datasheet for the BSR19A,215?
    The datasheet can be found on the official Nexperia website or through authorized distributors like Mouser, Digi-Key, and Avnet.
  7. What is the maximum collector-emitter voltage of the BSR19A,215?
    The specific maximum collector-emitter voltage can be found in the datasheet, but it is designed for high-voltage applications.
  8. Is the BSR19A,215 suitable for high-current applications?
    No, the BSR19A,215 is designed for low current (max. 300 mA) and high voltage applications.
  9. Can I use the BSR19A,215 in automotive systems?
    Yes, it is suitable for use in automotive systems due to its high voltage handling capabilities.
  10. Where can I purchase the BSR19A,215?
    The BSR19A,215 can be purchased from authorized distributors such as Mouser, Digi-Key, Avnet, and others listed on the Nexperia website.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):300 mA
Voltage - Collector Emitter Breakdown (Max):160 V
Vce Saturation (Max) @ Ib, Ic:150mV @ 1mA, 10mA
Current - Collector Cutoff (Max):50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:80 @ 10mA, 5V
Power - Max:250 mW
Frequency - Transition:300MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:TO-236AB
0 Remaining View Similar

In Stock

$0.49
1,179

Please send RFQ , we will respond immediately.
