BC857B-QVL
  • Share:

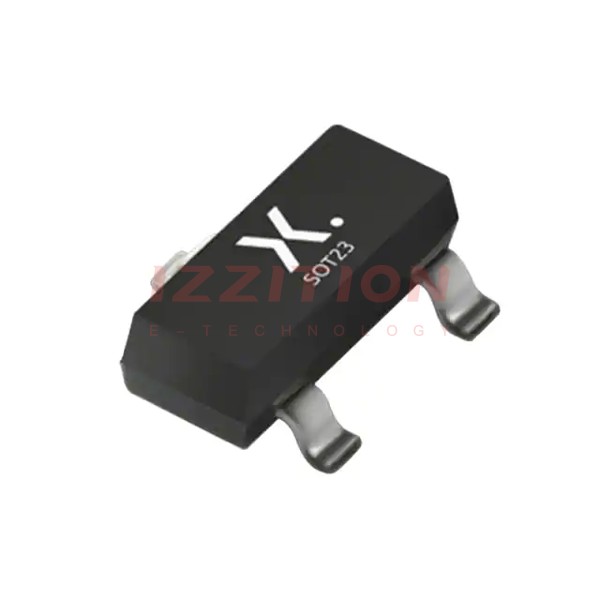

Nexperia USA Inc. BC857B-QVL

Manufacturer No:
BC857B-QVL
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Description:
TRANS PNP 45V 0.1A TO236AB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC857B-QVL is a general-purpose NPN silicon transistor manufactured by Nexperia USA Inc. This transistor is part of the BC857 series, known for its low current and low voltage capabilities, making it suitable for a wide range of applications. The BC857B-QVL is packaged in the SOT23 (TO-236AB) format, which is compact and ideal for space-constrained designs.

Key Specifications

ParameterValue
Collector-Emitter Voltage (Vce)45 V
Collector-Base Voltage (Vcb)50 V
Emitter-Base Voltage (Veb)5 V
Collector Current (Ic)100 mA
Base Current (Ib)50 mA
Power Dissipation (Ptot)250 mW
PackageSOT23 (TO-236AB)
Operating Temperature Range-55°C to 150°C

Key Features

  • Low current (max. 100 mA) and low voltage (max. 65 V) capabilities.
  • Qualified according to AEC-Q101, making it suitable for automotive applications.
  • Compact SOT23 (TO-236AB) package.
  • Lead-free and halogen-free, compliant with EU RoHS and REACH regulations.
  • General-purpose switching and amplification.

Applications

The BC857B-QVL transistor is versatile and can be used in various applications across different industries, including:

  • Automotive: Due to its AEC-Q101 qualification, it is recommended for use in automotive systems.
  • Industrial: Suitable for general-purpose switching and amplification in industrial control systems.
  • Consumer Electronics: Used in mobile, computing, and consumer electronic devices.
  • Power and Computing: Finds applications in power management and computing systems.

Q & A

  1. What is the collector-emitter voltage of the BC857B-QVL transistor?
    The collector-emitter voltage (Vce) of the BC857B-QVL transistor is 45 V.
  2. What is the maximum collector current of the BC857B-QVL transistor?
    The maximum collector current (Ic) of the BC857B-QVL transistor is 100 mA.
  3. What package type is the BC857B-QVL transistor available in?
    The BC857B-QVL transistor is available in the SOT23 (TO-236AB) package.
  4. Is the BC857B-QVL transistor suitable for automotive applications?
    Yes, the BC857B-QVL transistor is qualified according to AEC-Q101 and is recommended for use in automotive applications.
  5. Is the BC857B-QVL transistor lead-free and halogen-free?
    Yes, the BC857B-QVL transistor is lead-free and halogen-free, compliant with EU RoHS and REACH regulations.
  6. What is the operating temperature range of the BC857B-QVL transistor?
    The operating temperature range of the BC857B-QVL transistor is -55°C to 150°C.
  7. What are the typical applications of the BC857B-QVL transistor?
    The BC857B-QVL transistor is used in general-purpose switching and amplification in various industries, including automotive, industrial, consumer electronics, and power management.
  8. How does the BC857B-QVL transistor comply with environmental regulations?
    The BC857B-QVL transistor is compliant with EU RoHS and REACH regulations, and it is lead-free and halogen-free.
  9. Can I order samples of the BC857B-QVL transistor from Nexperia?
    Yes, you can order samples of the BC857B-QVL transistor through Nexperia's sales organization or from their network of global and regional distributors.
  10. What is the power dissipation of the BC857B-QVL transistor?
    The power dissipation (Ptot) of the BC857B-QVL transistor is 250 mW.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:650mV @ 5mA, 100mA
Current - Collector Cutoff (Max):15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:220 @ 2mA, 5V
Power - Max:250 mW
Frequency - Transition:100MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:TO-236AB
0 Remaining View Similar

In Stock

-
143

Please send RFQ , we will respond immediately.
