Overview

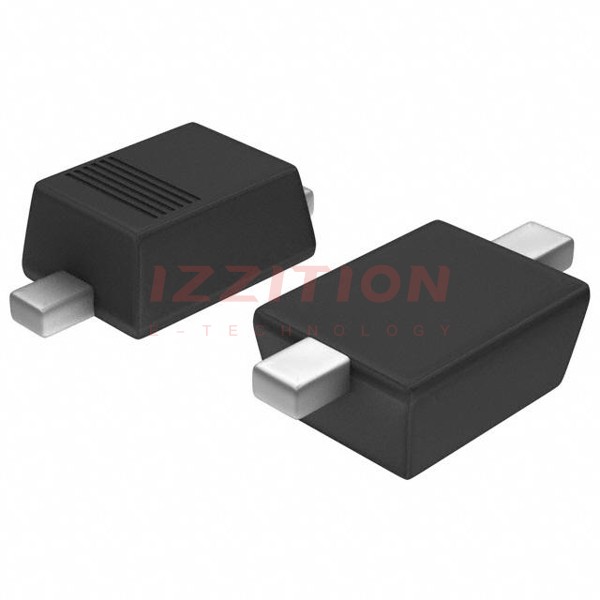

The BAT54J/ZLX is a planar Schottky barrier single diode produced by Nexperia USA Inc. This component is encapsulated in a very small and flat lead SOD323F (SC-90) Surface-Mounted Device (SMD) plastic package. It is designed to offer low forward voltage, low capacitance, and high-speed switching capabilities, making it suitable for a variety of applications across different industries.
Key Specifications
| Type number | Package version | Package name | Size (mm) | VR [max] (V) | IF [max] (mA) | Cd [max] (pF) | @VR (V) | IR [max] (µA) | @VR (V) | Automotive qualified |
|---|---|---|---|---|---|---|---|---|---|---|
| BAT54J | SOD323F | SC-90 | 1.7 x 1.25 x 0.7 | 30.0 | 200.0 | 10.0 | 1.0 | 2.0 | 25.0 | N |
Key Features
- Low Forward Voltage: The BAT54J/ZLX features a low forward voltage, which is beneficial for reducing power losses in high-frequency applications.
- Low Capacitance: This diode has low capacitance, making it suitable for high-speed switching applications.
- Flat Leads: The SOD323F package has flat leads, which provide excellent coplanarity and improved thermal behavior.
- Integrated Guard Ring: The diode includes an integrated guard ring for stress protection.
- Voltage Clamping and Line Termination: It is used for voltage clamping and line termination due to its Schottky barrier characteristics.
- Reverse Polarity Protection: The BAT54J/ZLX offers reverse polarity protection, enhancing the reliability of the circuit.
Applications
The BAT54J/ZLX is versatile and can be used in various applications across different industries, including:
- Automotive: Although not AEC-Q101 qualified, it can still be used in non-automotive qualified automotive applications where high reliability is needed.
- Industrial: Suitable for industrial power supplies, motor drives, and other high-frequency switching applications.
- Consumer Electronics: Used in mobile and consumer electronics for voltage clamping, line termination, and reverse polarity protection.
- Power Supplies: Ideal for use in switch-mode power supplies due to its low forward voltage and high-speed switching capabilities.
Q & A
- What is the package type of the BAT54J/ZLX?
The BAT54J/ZLX is encapsulated in a SOD323F (SC-90) Surface-Mounted Device (SMD) plastic package.
- What is the maximum reverse voltage (VR) of the BAT54J/ZLX?
The maximum reverse voltage (VR) is 30.0 V.
- What is the maximum forward current (IF) of the BAT54J/ZLX?
The maximum forward current (IF) is 200.0 mA.
- What is the typical capacitance (Cd) of the BAT54J/ZLX?
The typical capacitance (Cd) is 10.0 pF.
- Is the BAT54J/ZLX automotive qualified?
No, the BAT54J/ZLX is not automotive qualified.
- What are the key features of the BAT54J/ZLX?
The key features include low forward voltage, low capacitance, flat leads, integrated guard ring, voltage clamping, line termination, and reverse polarity protection.
- In which applications can the BAT54J/ZLX be used?
The BAT54J/ZLX can be used in automotive, industrial, consumer electronics, and power supplies.
- How does the BAT54J/ZLX contribute to power efficiency in circuits?
The BAT54J/ZLX contributes to power efficiency through its low forward voltage and high-speed switching capabilities, reducing power losses in high-frequency applications.
- What is the significance of the integrated guard ring in the BAT54J/ZLX?
The integrated guard ring provides stress protection, enhancing the reliability and robustness of the diode.
- How can I obtain samples of the BAT54J/ZLX?
Samples can be obtained through Nexperia's sales organization or their network of global and regional distributors.
