Overview

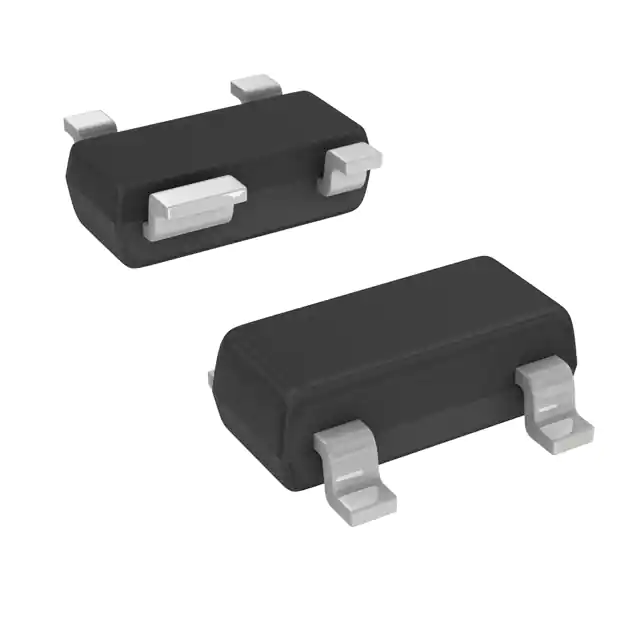

The BAS28,215 is a high-speed double diode produced by Nexperia USA Inc. This component is designed for high-speed switching applications and is encapsulated in a small plastic SMD SOT143 package. The diode array consists of two electrically isolated elements, making it suitable for various general-purpose switching applications. The BAS28,215 is AEC-Q101 qualified, ensuring high reliability and performance in automotive and other demanding environments.
Key Specifications
| Characteristic | Symbol | Value | Unit |
|---|---|---|---|
| Repetitive Peak Reverse Voltage | VRRM | 85 | V |
| Continuous Reverse Voltage | VR | 75 | V |
| Repetitive Peak Forward Current | IFRM | 500 | mA |
| Forward Voltage | VF | 0.715 - 1.25 | V |
| Reverse Recovery Time | tRR | 4 | ns |
| Total Capacitance | CT | 1.5 | pF |
| Package | SOT143B | ||
| Operating and Storage Temperature Range | TJ, TSTG | -65 to +150 | °C |
Key Features
- High-speed switching with a reverse recovery time of up to 4 ns
- Two electrically isolated diodes in a single compact SOT143 package
- Totally lead-free and fully RoHS compliant, halogen and antimony free
- AEC-Q101 qualified for high reliability in automotive and industrial applications
- Continuous reverse voltage of up to 75 V and repetitive peak reverse voltage of up to 85 V
- Repetitive peak forward current of up to 500 mA
- Molded plastic package with UL flammability classification rating 94V-0
Applications
The BAS28,215 is suitable for a wide range of applications, including:
- High-speed switching in surface-mounted circuits
- General-purpose switching applications
- Automotive systems requiring high reliability and performance
- Industrial and power management systems
- Consumer and mobile electronics where fast switching and reliability are crucial
Q & A
- What is the package type of the BAS28,215?
The BAS28,215 is encapsulated in a small plastic SMD SOT143 package.
- What is the maximum repetitive peak reverse voltage of the BAS28,215?
The maximum repetitive peak reverse voltage is 85 V.
- What is the reverse recovery time of the BAS28,215?
The reverse recovery time is up to 4 ns.
- Is the BAS28,215 RoHS compliant?
Yes, the BAS28,215 is totally lead-free and fully RoHS compliant.
- What are the operating and storage temperature ranges for the BAS28,215?
The operating and storage temperature range is -65 to +150°C.
- What is the maximum forward current for the BAS28,215?
The repetitive peak forward current is up to 500 mA.
- Is the BAS28,215 AEC-Q101 qualified?
Yes, the BAS28,215 is AEC-Q101 qualified for high reliability in automotive applications.
- What is the total capacitance of the BAS28,215?
The total capacitance is up to 1.5 pF.
- What are the typical applications of the BAS28,215?
Typical applications include high-speed switching in surface-mounted circuits, general-purpose switching, and automotive systems.
- How do I order samples of the BAS28,215?
Samples can be ordered via Nexperia's sales organization or through their network of global and regional distributors.
