Overview

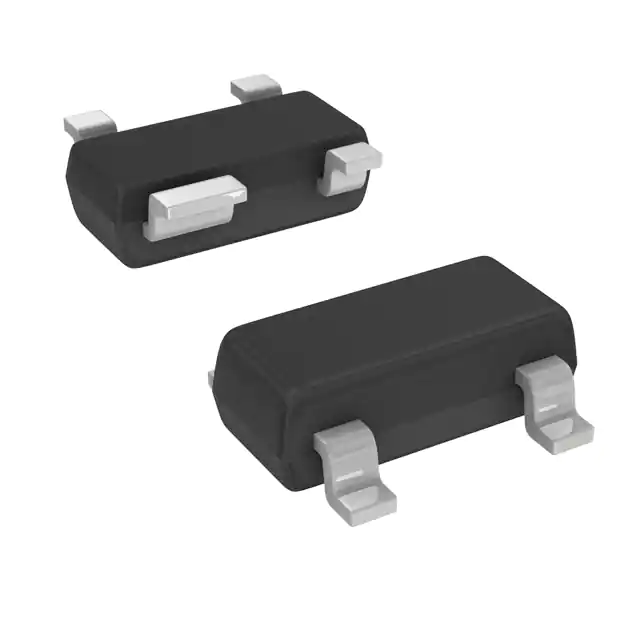

The BAS28,235 is a high-speed double diode produced by Nexperia USA Inc. This component is fabricated in planar technology and encapsulated in a small plastic SMD SOT143B package. The diode array consists of two independent diodes, making it suitable for various high-speed switching applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Type Number | BAS28 | - |
| Orderable Part Number | BAS28,235 | - |
| Package | SOT143B | - |
| Continuous Reverse Voltage (VR) | 75 | V |
| Repetitive Peak Reverse Voltage | 85 | V |
| Repetitive Peak Forward Current (IFSM) | 500 | mA |
| Forward Voltage (VF) | 1000 @ IF = 50 mA | mV |
| Reverse Current (IR) | 1000 @ VR = 75 V | nA |
| Switching Time (trr) | 4 | ns |
| Forward Current (IF) | 215 | mA |
| Capacitance (Cd) | 1.5 | pF |
Key Features
- High-speed switching diodes with a maximum switching time of 4 ns.
- Encapsulated in a small plastic SMD SOT143B package, making it suitable for surface-mounted circuits.
- Consists of two independent diodes, providing flexibility in circuit design.
- AEC-Q101 qualified, ensuring reliability and performance in automotive and other demanding applications.
- Lead-free and halogen-free according to Nexperia's halogen-free definition.
Applications
- High-speed switching in surface-mounted circuits.
- Automotive electronics, including e-mobility solutions.
- Industrial applications, such as power supplies and motor drives.
- Consumer and mobile devices requiring high-speed diode functionality.
- Wearable and IoT devices where compact and efficient components are necessary.
Q & A
- What is the BAS28,235 diode array used for?
The BAS28,235 is used for high-speed switching applications in various electronic circuits.
- What is the maximum continuous reverse voltage of the BAS28,235?
The maximum continuous reverse voltage is 75 V.
- What is the repetitive peak forward current of the BAS28,235?
The repetitive peak forward current is 500 mA.
- What is the switching time of the BAS28,235 diodes?
The switching time is a maximum of 4 ns.
- Is the BAS28,235 AEC-Q101 qualified?
Yes, the BAS28,235 is AEC-Q101 qualified.
- What package type does the BAS28,235 come in?
The BAS28,235 comes in the SOT143B package.
- Are the diodes in the BAS28,235 connected?
No, the diodes in the BAS28,235 are not connected.
- Is the BAS28,235 lead-free and halogen-free?
Yes, the BAS28,235 is lead-free and halogen-free according to Nexperia's halogen-free definition.
- What are some common applications of the BAS28,235?
Common applications include automotive electronics, industrial power supplies, consumer devices, and wearable technology.
- How can I order samples of the BAS28,235?
Samples can be ordered through Nexperia's sales organization or through their network of global and regional distributors.
