Overview

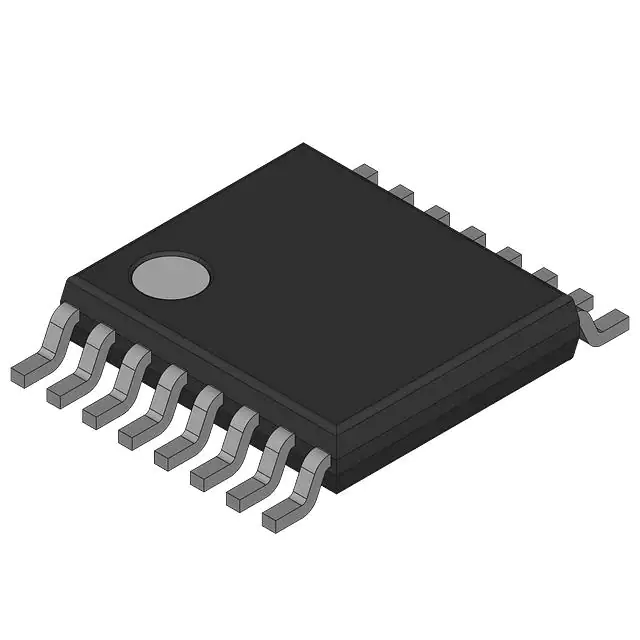

The 74LVC594APW, manufactured by Nexperia USA Inc., is an 8-bit serial-in/serial or parallel-out shift register with a storage register. This device is part of the 74LVC series and is designed to operate in a wide range of voltage levels, making it versatile for various electronic designs. It features separate clock and reset inputs for both the shift and storage registers, enabling precise control over data shifting and storage. The device is suitable for use in mixed 3.3 V and 5 V environments, making it a valuable component in modern electronic systems.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | 74LVC594APW |
| Package | 16-TSSOP (SOT403-1) |
| VCC (V) | 1.2 - 5.5 |
| Logic Switching Levels | CMOS/LVTTL |
| Output Drive Capability (mA) | ± 24 |
| Propagation Delay (ns) | 3.1 |
| Maximum Frequency (MHz) | 180 |
| Number of Bits | 8 |
| Operating Temperature (°C) | -40 to 125 |
| Thermal Resistance (K/W) | 124 (j-a), 4.4 (j-top), 53.9 (j-c) |
Key Features
- 8-bit serial-in/serial or parallel-out shift register with a storage register.
- Separate clock and reset inputs for both shift and storage registers.
- Data is shifted on the LOW-to-HIGH transitions of the SHCP input, and transferred to the storage register on a LOW-to-HIGH transition of the STCP input.
- Inputs can be driven from either 3.3 V or 5 V devices, making it suitable for mixed voltage environments.
- Schmitt-trigger action at all inputs for tolerance of slower input rise and fall times.
- Low power dissipation and fully specified for partial power down applications.
Applications
The 74LVC594APW is widely used in various electronic systems, including microprocessors, computers, computer networks, frequency counters, and digital signal processors. It is also applicable in automotive, industrial, power, computing, consumer, mobile, and wearable device industries due to its versatility and reliability.
Q & A
- What is the primary function of the 74LVC594APW? The primary function is to act as an 8-bit serial-in/serial or parallel-out shift register with a storage register.
- What is the operating voltage range of the 74LVC594APW? The operating voltage range is from 1.2 V to 5.5 V.
- What type of package does the 74LVC594APW come in? It comes in a 16-TSSOP (SOT403-1) package.
- Can the 74LVC594APW be used in mixed voltage environments? Yes, it can be used in mixed 3.3 V and 5 V environments.
- What is the maximum frequency of operation for the 74LVC594APW? The maximum frequency of operation is 180 MHz.
- How is data shifted and stored in the 74LVC594APW? Data is shifted on the LOW-to-HIGH transitions of the SHCP input and transferred to the storage register on a LOW-to-HIGH transition of the STCP input.
- What is the thermal resistance of the 74LVC594APW? The thermal resistance is 124 K/W (j-a), 4.4 K/W (j-top), and 53.9 K/W (j-c).
- What are the operating temperature limits for the 74LVC594APW? The operating temperature range is from -40°C to 125°C.
- Does the 74LVC594APW support partial power down applications? Yes, it is fully specified for partial power down applications.
- What type of action do the inputs of the 74LVC594APW have? The inputs have Schmitt-trigger action for tolerance of slower input rise and fall times.
