Overview

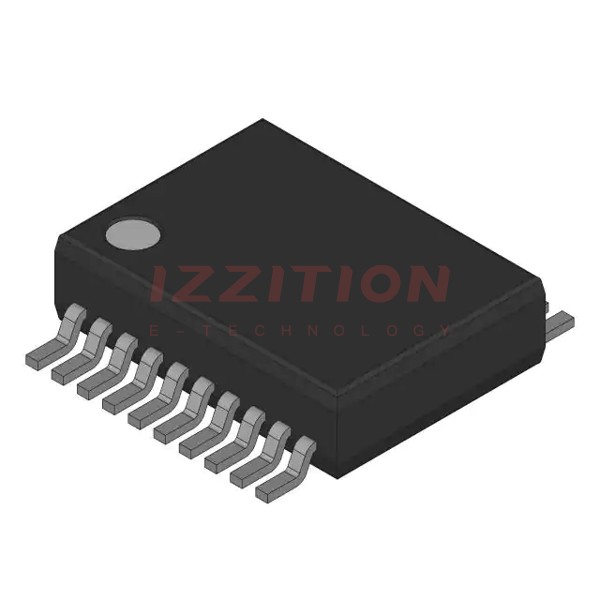

The 74HC374DB,112-NEX is a high-performance integrated circuit (IC) produced by Nexperia USA Inc. This component is a D-type flip-flop, designed to operate within the 74HC (High-speed CMOS) logic family. It features an 8-bit positive edge-triggered configuration, making it suitable for a variety of digital logic applications. The IC is packaged in a 20-SSOP (Shrink Small Outline Package) with a width of 0.209 inches (5.30 mm), ensuring compact and efficient use in modern electronic designs.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | 74HC374DB,112-NEX |
| Manufacturer | Nexperia USA Inc. |
| Logic Family | 74HC (High-speed CMOS) |
| Flip-Flop Type | D-Type, Single 8-Bit |
| Triggering | Positive Edge |
| Package Type | 20-SSOP (0.209" / 5.30mm Width) |
| Operating Voltage | 2.0 V to 6.0 V |
| Operating Temperature | -40°C to 125°C |
| Propagation Delay | Typically 15 ns at Vcc = 5V |
Key Features
- High-speed CMOS logic with low power consumption
- Positive edge-triggered D-type flip-flop with 8-bit configuration
- Compact 20-SSOP packaging for efficient board design
- Wide operating voltage range (2.0 V to 6.0 V)
- High noise immunity and low power dissipation
- Suitable for a wide range of digital logic applications
Applications
The 74HC374DB,112-NEX is versatile and can be used in various digital logic circuits, including:
- Sequential logic circuits
- Counters and timers
- Shift registers
- Data storage and retrieval systems
- General-purpose digital logic applications in consumer electronics, automotive systems, and industrial control systems
Q & A
- What is the logic family of the 74HC374DB,112-NEX?
The 74HC374DB,112-NEX belongs to the 74HC (High-speed CMOS) logic family. - What type of flip-flop is the 74HC374DB,112-NEX?
The 74HC374DB,112-NEX is a D-type flip-flop. - What is the package type of the 74HC374DB,112-NEX?
The 74HC374DB,112-NEX is packaged in a 20-SSOP. - What is the operating voltage range of the 74HC374DB,112-NEX?
The operating voltage range is 2.0 V to 6.0 V. - What is the typical propagation delay of the 74HC374DB,112-NEX at Vcc = 5V?
The typical propagation delay is 15 ns at Vcc = 5V. - What are some common applications of the 74HC374DB,112-NEX?
Common applications include sequential logic circuits, counters, timers, shift registers, and general-purpose digital logic in various electronic systems. - What is the operating temperature range of the 74HC374DB,112-NEX?
The operating temperature range is -40°C to 125°C. - Is the 74HC374DB,112-NEX suitable for high-speed applications?
Yes, it is designed for high-speed CMOS logic applications. - Does the 74HC374DB,112-NEX have low power consumption?
Yes, it has low power consumption, which is a characteristic of the 74HC logic family. - Where can I find the datasheet for the 74HC374DB,112-NEX?
You can find the datasheet on the Nexperia website or through distributors like DigiKey and icwhale.com.
