Overview
The 74HC2G86DP-Q100H, produced by Nexperia USA Inc., is a dual 2-input EXCLUSIVE-OR gate integrated circuit. This component is part of the 74HC and 74HCT logic family, known for its low power consumption and high noise immunity. The device is designed to operate over a wide supply voltage range, making it versatile for various electronic designs.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | 74HC2G86DP |
| Supply Voltage (VCC) | 2.0 V to 6.0 V |
| Logic Switching Levels | CMOS (for 74HC2G86), TTL (for 74HCT2G86) |
| Output Drive Capability | ± 5.2 mA |
| Propagation Delay (tpd) | 9.0 ns |
| Maximum Frequency (fmax) | 36 MHz |
| Number of Bits | 2 |

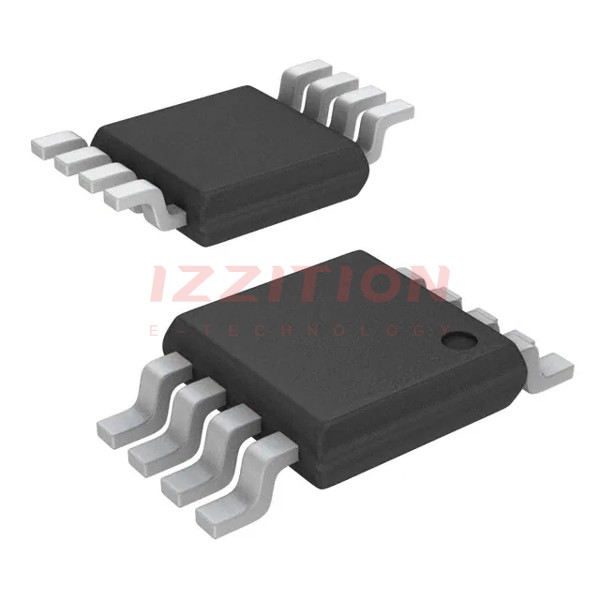

| Package | TSSOP8 (SOT505-2) |
| Operating Temperature | -40 °C to +125 °C |
| ESD Protection | HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V |
Key Features
- Wide supply voltage range from 2.0 V to 6.0 V.
- CMOS low power dissipation.
- High noise immunity.
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
- Inputs include clamp diodes, enabling the use of current limiting resistors to interface inputs to voltages in excess of VCC.
- Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) and JESD7A (2.0 V to 6.0 V).
Applications
The 74HC2G86DP-Q100H is suitable for a wide range of applications across various industries, including:
- Automotive electronics: Enhancing safety and efficiency in e-mobility options.
- Industrial electronics: Supporting energy-efficient and reliable solutions for industrial equipment and systems.
- Consumer electronics: Used in mobile, computing, and consumer devices requiring low power and high noise immunity.
- Power and computing: Ideal for applications requiring efficient and robust logic operations.
Q & A
- What is the 74HC2G86DP-Q100H? The 74HC2G86DP-Q100H is a dual 2-input EXCLUSIVE-OR gate integrated circuit produced by Nexperia USA Inc.
- What is the supply voltage range of the 74HC2G86DP-Q100H? The supply voltage range is from 2.0 V to 6.0 V.
- What are the logic switching levels for this IC? The logic switching levels are CMOS for the 74HC2G86 and TTL for the 74HCT2G86.
- What is the output drive capability of the 74HC2G86DP-Q100H? The output drive capability is ± 5.2 mA.
- What is the propagation delay of the 74HC2G86DP-Q100H? The propagation delay is 9.0 ns.
- What is the maximum frequency of operation for this IC? The maximum frequency is 36 MHz.
- What package type is the 74HC2G86DP-Q100H available in? It is available in TSSOP8 (SOT505-2) package.
- What is the operating temperature range for the 74HC2G86DP-Q100H? The operating temperature range is from -40 °C to +125 °C.
- Does the 74HC2G86DP-Q100H have ESD protection? Yes, it has ESD protection: HBM exceeds 2000 V and CDM exceeds 1000 V.
- What industries can the 74HC2G86DP-Q100H be used in? It can be used in automotive, industrial, consumer, and power computing applications.
