Overview
The 74CBTLV3125BQ-Q10X is a 4-bit bus switch IC produced by Nexperia USA Inc. This component is part of the 74CBTLV series and is designed to meet the stringent requirements of automotive and industrial applications, being fully qualified to the AEC-Q100 standard. It features low power consumption and high-speed switching, making it ideal for various digital signal switching and multiplexing tasks.
Key Specifications
| Type number | VCC (V) | RON (Ω) | Logic switching levels | tpd (ns) | Power dissipation considerations | Tamb (°C) | Rth(j-a) (K/W) | Ψth(j-top) (K/W) | Rth(j-c) (K/W) | Package name |
|---|---|---|---|---|---|---|---|---|---|---|
| 74CBTLV3125BQ-Q100 | 2.3 - 3.6 | 7 | CMOS/LVTTL | 0.2 | Very low | -40 ~ 125 | 107 | 21.3 | 75 | DHVQFN14 (SOT762-1) |
Key Features
- Low Power Consumption: The 74CBTLV3125BQ-Q10X operates with very low power dissipation, making it suitable for power-sensitive applications.
- High-Speed Switching: With a propagation delay of 0.2 ns, this IC ensures fast and reliable signal switching.
- Automotive Qualified: Fully compliant with the AEC-Q100 standard, ensuring reliability and performance in automotive environments.

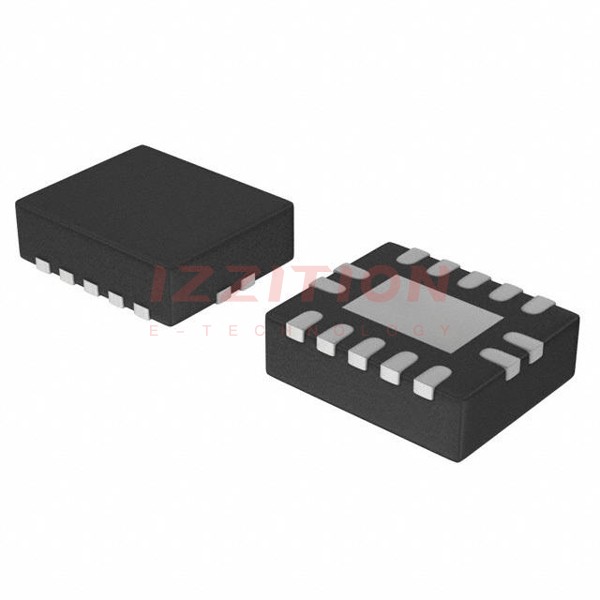

- Compact Packaging: Available in a 14-DHVQFN (2.5x3) package, which is leadless and dual in-line compatible, enhancing thermal performance.
- Wide Operating Temperature Range: Operates from -40°C to 125°C, making it versatile for various industrial and automotive applications.
Applications
The 74CBTLV3125BQ-Q10X is designed for use in a variety of applications, including:
- Automotive Electronics: Suitable for use in automotive systems due to its AEC-Q100 qualification, enhancing safety and efficiency in e-mobility solutions.
- Industrial Automation: Ideal for industrial environments requiring high reliability and low power consumption, such as in motor drives, collaborative robots (cobots), and industrial equipment.
- Signal Switching and Multiplexing: Used in digital signal switching and multiplexing tasks where high-speed and low power are critical.
Q & A
- What is the operating voltage range of the 74CBTLV3125BQ-Q10X?
The operating voltage range is 2.3V to 3.6V. - What is the propagation delay of the 74CBTLV3125BQ-Q10X?
The propagation delay is 0.2 ns. - What is the package type of the 74CBTLV3125BQ-Q10X?
The package type is 14-DHVQFN (SOT762-1), which is a leadless and dual in-line compatible thermal enhanced very thin quad flat package. - Is the 74CBTLV3125BQ-Q10X automotive qualified?
Yes, it is fully qualified to the AEC-Q100 standard. - What is the operating temperature range of the 74CBTLV3125BQ-Q10X?
The operating temperature range is -40°C to 125°C. - What are the logic switching levels supported by the 74CBTLV3125BQ-Q10X?
The IC supports CMOS/LVTTL logic switching levels. - Is the 74CBTLV3125BQ-Q10X RoHS compliant?
Yes, it is lead-free and RoHS compliant. - What are some typical applications of the 74CBTLV3125BQ-Q10X?
Typical applications include automotive electronics, industrial automation, and digital signal switching and multiplexing tasks. - How many independent circuits does the 74CBTLV3125BQ-Q10X have?
The IC has 4 independent circuits. - What is the thermal resistance (Rth(j-a)) of the 74CBTLV3125BQ-Q10X?
The thermal resistance (Rth(j-a)) is 107 K/W.
