Overview
The 74AHC1G86GV-Q100,1 is a single 2-input EXCLUSIVE-OR (XOR) gate integrated circuit produced by Nexperia USA Inc. This device is part of the 74AHC series, known for its high-speed and low-power consumption characteristics. It is designed to operate within a wide voltage range, making it versatile for various digital logic applications. The XOR gate is a fundamental component in digital circuits, providing the logical output based on the inputs, which is essential in many electronic systems.
Key Specifications
| Parameter | Value |
|---|---|
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Voltage - Supply | 2 V ~ 5.5 V |
| Current - Quiescent (Max) | 1µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.5 V ~ 1.65 V |
| Logic Level - High | 1.5 V ~ 3.85 V |
| Max Propagation Delay @ V, Max CL | 8.8ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |

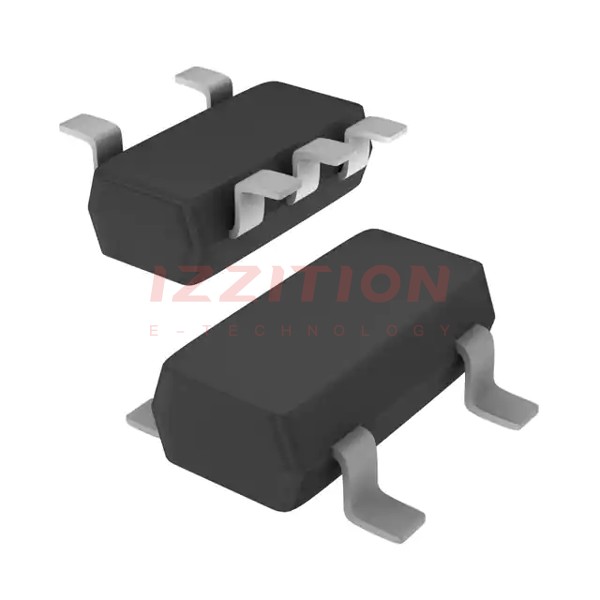

| Package / Case | 5-TSOP, SC-74A, SOT-753 |
Key Features
- High-speed operation with a maximum propagation delay of 8.8ns at 5V and 50pF load.
- Wide operating voltage range from 2V to 5.5V, making it compatible with various digital logic systems.
- Low power consumption with a quiescent current of only 1µA.
- Inputs are overvoltage tolerant, allowing the device to act as a translator in mixed voltage environments.
- Compact 5-TSOP package (SC-74A, SOT-753) suitable for surface mount applications.
- Robust design ensuring reliable performance across a temperature range of -40°C to 125°C.
Applications
- Digital logic circuits requiring high-speed XOR operations.
- Microcontroller and microprocessor systems where low power consumption is crucial.
- Industrial automation and control systems that demand reliable and high-speed logic operations.
- Telecommunications equipment where fast and efficient logic gates are necessary.
- Consumer electronics such as calculators, digital watches, and other portable devices.
Q & A
- What is the primary function of the 74AHC1G86GV-Q100,1 IC?
The primary function is to perform a 2-input EXCLUSIVE-OR (XOR) logical operation. - What is the operating voltage range of this IC?
The operating voltage range is from 2V to 5.5V. - What is the maximum propagation delay of this IC at 5V and 50pF load?
The maximum propagation delay is 8.8ns. - What is the quiescent current of the 74AHC1G86GV-Q100,1 IC?
The quiescent current is 1µA. - What is the package type of this IC?
The package type is 5-TSOP (SC-74A, SOT-753). - What is the operating temperature range of this IC?
The operating temperature range is from -40°C to 125°C. - Is the 74AHC1G86GV-Q100,1 IC suitable for surface mount applications?
Yes, it is designed for surface mount applications. - Are the inputs of the 74AHC1G86GV-Q100,1 IC overvoltage tolerant?
Yes, the inputs are overvoltage tolerant. - What are some common applications of the 74AHC1G86GV-Q100,1 IC?
Common applications include digital logic circuits, microcontroller and microprocessor systems, industrial automation, telecommunications equipment, and consumer electronics. - Where can I find the datasheet for the 74AHC1G86GV-Q100,1 IC?
The datasheet can be found on the Nexperia website, Digi-Key, Mouser Electronics, and other authorized distributors.
