Overview

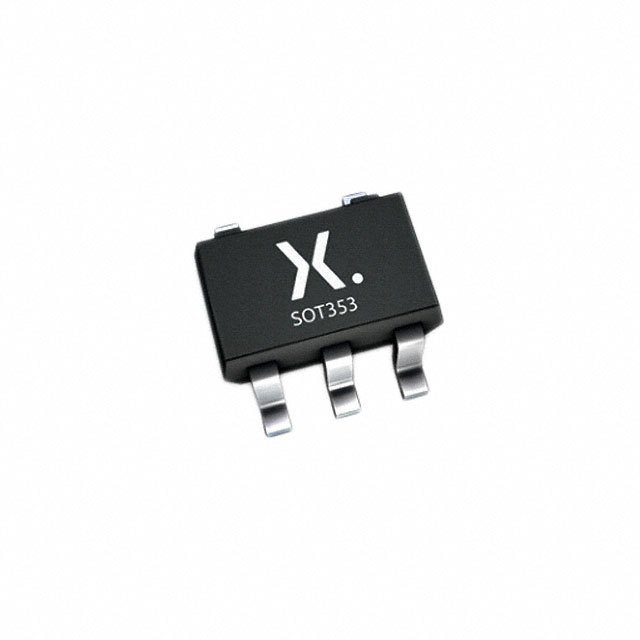

The 74AHC1G04GW,165 is a single-channel inverter integrated circuit produced by Nexperia USA Inc. This component is part of the 74AHC series, known for its high-speed CMOS logic. It is designed to operate within a wide supply voltage range, making it versatile for various applications. The device features overvoltage tolerant inputs, allowing it to be used as a translator in mixed voltage environments.
Key Specifications
| Parameter | Description | Value |
|---|---|---|
| Type Number | Part number | 74AHC1G04GW,165 |
| VCC | Supply voltage range | 2.0 V to 5.5 V |
| Logic Switching Levels | CMOS | - |
| Output Drive Capability | Output current | ± 8 mA |
| fmax | Maximum frequency | 60 MHz |
| Number of Bits | Single channel | 1 |
| Power Dissipation | Low power | - |
| Tamb | Operating temperature range | -40°C to 125°C |
| Package | Package type | 5-TSSOP, SC-70-5, SOT-353 |
| Mounting Type | Surface mount | - |
Key Features
- Wide Supply Voltage Range: Operates from 2.0 V to 5.5 V, making it suitable for a variety of applications.
- Overvoltage Tolerant Inputs: Inputs can handle voltages up to 5.5 V, allowing for use in mixed voltage environments.
- High Noise Immunity: Ensures reliable operation in noisy environments.
- Low Power Consumption: Low quiescent current, typically 1 µA.
- High Speed: Maximum propagation delay of 7.5 ns at VCC = 5 V and CL = 50 pF.
- Compact Package: Available in 5-TSSOP, SC-70-5, SOT-353 packages.
Applications
The 74AHC1G04GW,165 is suitable for a wide range of applications, including:
- Digital Logic Circuits: Used in various digital logic circuits requiring inversion.
- Mixed Voltage Systems: Acts as a translator between different voltage levels.
- High-Speed Data Processing: Ideal for high-speed data processing due to its low propagation delay.
- Low Power Designs: Suitable for battery-powered devices and other low power applications.
- Automotive and Industrial Systems: Can operate within the extended temperature range, making it suitable for automotive and industrial environments.
Q & A
- What is the supply voltage range of the 74AHC1G04GW,165?
The supply voltage range is from 2.0 V to 5.5 V.
- What is the maximum frequency of operation for this IC?
The maximum frequency of operation is 60 MHz.
- What is the output drive capability of the 74AHC1G04GW,165?
The output drive capability is ± 8 mA.
- What is the operating temperature range of this component?
The operating temperature range is -40°C to 125°C.
- What package types are available for the 74AHC1G04GW,165?
It is available in 5-TSSOP, SC-70-5, SOT-353 packages).
- Is the 74AHC1G04GW,165 overvoltage tolerant?
- What is the typical quiescent current of the 74AHC1G04GW,165?
The typical quiescent current is 1 µA).
- What is the maximum propagation delay of the 74AHC1G04GW,165?
The maximum propagation delay is 7.5 ns at VCC = 5 V and CL = 50 pF).
- Is the 74AHC1G04GW,165 suitable for high-speed applications?
- Can the 74AHC1G04GW,165 be used in mixed voltage systems?
