Overview

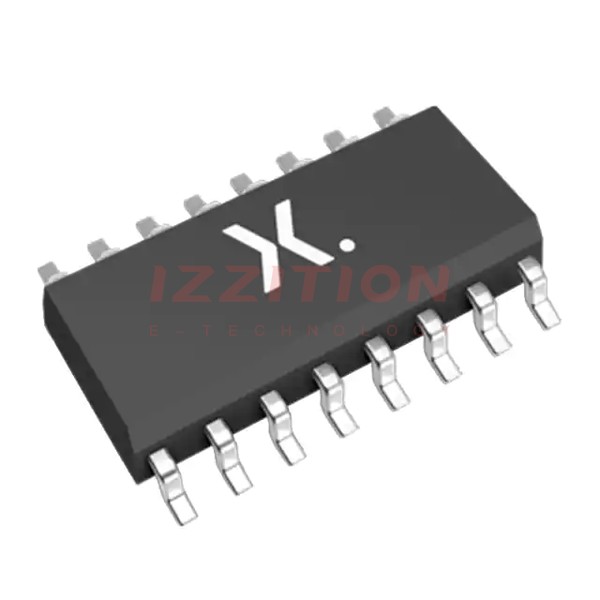

The 74AHC138D-Q100J is a high-speed Si-gate CMOS decoder/demultiplexer integrated circuit produced by Nexperia USA Inc. This component is part of the 74AHC/AHCT138 series, known for its compatibility with low power Schottky TTL (LSTTL) and its high-speed operation. The device is qualified to the AEC-Q100 standard, making it suitable for automotive applications.
Key Specifications
| Parameter | Value |
|---|---|
| Operating Temperature | -40°C to 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154") |
Key Features
- High-speed Si-gate CMOS technology for fast switching times.
- Pin compatible with low power Schottky TTL (LSTTL).
- AEC-Q100 qualified, ensuring reliability in automotive applications.
- Surface mount package (16-SOIC) for compact design.
- Wide operating temperature range from -40°C to 125°C.
Applications
The 74AHC138D-Q100J is widely used in various applications, including:
- Automotive systems: Due to its AEC-Q100 qualification, it is suitable for use in automotive electronics, such as in-car entertainment systems, navigation, and safety features.
- Industrial control systems: Its high-speed operation and reliability make it a good choice for industrial control and automation.
- Consumer electronics: It can be used in consumer devices that require fast and reliable decoding and demultiplexing functions.
Q & A
- What is the operating temperature range of the 74AHC138D-Q100J?
The operating temperature range is -40°C to 125°C. - What is the package type of the 74AHC138D-Q100J?
The package type is 16-SOIC (0.154"). - Is the 74AHC138D-Q100J qualified for automotive use?
Yes, it is qualified to the AEC-Q100 standard. - What technology is used in the 74AHC138D-Q100J?
It uses high-speed Si-gate CMOS technology. - Is the 74AHC138D-Q100J pin compatible with other TTL devices?
Yes, it is pin compatible with low power Schottky TTL (LSTTL). - What are some common applications of the 74AHC138D-Q100J?
It is used in automotive systems, industrial control systems, and consumer electronics. - What is the mounting type of the 74AHC138D-Q100J?
The mounting type is surface mount. - Why is the 74AHC138D-Q100J suitable for high-speed applications?
It is suitable due to its high-speed Si-gate CMOS technology. - Can the 74AHC138D-Q100J be used in harsh environmental conditions?
Yes, it can operate in a wide temperature range, making it suitable for harsh environmental conditions. - Where can I find more detailed specifications of the 74AHC138D-Q100J?
You can find detailed specifications on the datasheet available from Nexperia or distributors like Digi-Key and Heisener.
