MT29F2G08ABAEAWP-E:E
  • Share:

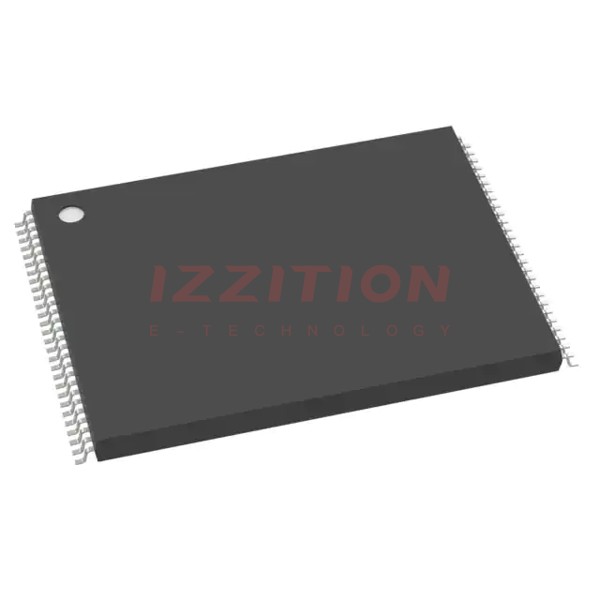

Micron Technology Inc. MT29F2G08ABAEAWP-E:E

Manufacturer No:
MT29F2G08ABAEAWP-E:E
Manufacturer:
Micron Technology Inc.
Package:
Tube
Description:
IC FLASH 2GBIT PARALLEL 48TSOP I
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MT29F2G08ABAEAWP:E is a 2Gbit Single-Level Cell (SLC) NAND Flash memory component manufactured by Micron Technology Inc. This device is designed to provide high reliability and performance in various storage applications. It operates within a voltage range of 2.7V to 3.6V and is packaged in a 48-pin TSOP-I (Thin Small Outline Package) configuration. The MT29F2G08ABAEAWP:E is compliant with the ONFI (Open NAND Flash Interface) 1.0 specification, ensuring compatibility with a wide range of systems.

Key Specifications

Attribute Value
Manufacturer Micron Technology Inc.
Part Number MT29F2G08ABAEAWP:E
Category Memory / NAND FLASH
Package 48-pin TSOP-I
Device Size 2Gb (256M x 8)
Page Size 2112 bytes (2048 + 64 bytes)
Block Size 64 pages (128K + 4K bytes)
Plane Size 2 planes x 1024 blocks per plane
Operating Voltage 2.7V - 3.6V
Operating Temperature Commercial: 0°C to +70°C, Industrial: -40°C to +85°C
Data Retention 10 years
Endurance 100,000 PROGRAM/ERASE cycles
Read Time 25 μs (typical)
Program Time 200 μs (typical)
Erase Time 700 μs (typical)

Key Features

  • Single-Level Cell (SLC) Technology: Offers high reliability and endurance.
  • ONFI 1.0 Compliance: Ensures compatibility with a wide range of systems.
  • High Performance: Fast read, program, and erase times.
  • Low Power Consumption: Operates within a voltage range of 2.7V to 3.6V.
  • Advanced Command Set: Supports various commands for efficient data management.
  • Internal Data Move Operations: Supports data move operations within the plane.
  • Two-Plane Commands: Enhances performance by allowing simultaneous operations on two planes.
  • One-Time Programmable (OTP) Mode: Provides additional security features.

Applications

The MT29F2G08ABAEAWP:E SLC NAND Flash is suitable for a variety of applications requiring high reliability and performance, including:

  • Industrial Control Systems: Where data integrity and endurance are critical.
  • Automotive Systems: For applications that require robust storage solutions.
  • Embedded Systems: In devices that need reliable and efficient storage.
  • Networking Equipment: For storing configuration data and firmware.
  • Medical Devices: Where data reliability and longevity are paramount.

Q & A

  1. What is the storage capacity of the MT29F2G08ABAEAWP:E?

    The MT29F2G08ABAEAWP:E has a storage capacity of 2Gbit (256M x 8).

  2. What is the operating voltage range of the MT29F2G08ABAEAWP:E?

    The operating voltage range is 2.7V to 3.6V.

  3. What is the package type of the MT29F2G08ABAEAWP:E?

    The package type is 48-pin TSOP-I.

  4. What is the endurance of the MT29F2G08ABAEAWP:E?

    The endurance is 100,000 PROGRAM/ERASE cycles.

  5. Is the MT29F2G08ABAEAWP:E compliant with any specific interface standards?

    Yes, it is compliant with the ONFI 1.0 specification.

  6. What are the typical read, program, and erase times for the MT29F2G08ABAEAWP:E?

    The typical times are 25 μs for read, 200 μs for program, and 700 μs for erase.

  7. Does the MT29F2G08ABAEAWP:E support internal data move operations?

    Yes, it supports internal data move operations within the plane.

  8. What are the operating temperature ranges for the MT29F2G08ABAEAWP:E?

    The operating temperature ranges are Commercial: 0°C to +70°C and Industrial: -40°C to +85°C.

  9. What is the data retention period for the MT29F2G08ABAEAWP:E?

    The data retention period is 10 years.

  10. Does the MT29F2G08ABAEAWP:E support two-plane commands?

    Yes, it supports two-plane commands for enhanced performance.

  11. Is the MT29F2G08ABAEAWP:E suitable for automotive applications?

    Yes, it is suitable for automotive applications due to its robust and reliable design.

Product Attributes

Memory Type:Non-Volatile
Memory Format:Flash
Technology:FLASH - NAND
Memory Size:2Gb (256M x 8)
Memory Interface:Parallel
Clock Frequency:-
Write Cycle Time - Word, Page:-
Access Time:-
Voltage - Supply:2.7V ~ 3.6V
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Surface Mount
Package / Case:48-TFSOP (0.724", 18.40mm Width)
Supplier Device Package:48-TSOP I
0 Remaining View Similar

In Stock

-
536

Please send RFQ , we will respond immediately.
