BC847BL3-TP
  • Share:

Micro Commercial Co BC847BL3-TP

Manufacturer No:
BC847BL3-TP
Manufacturer:
Micro Commercial Co
Package:
Tape & Reel (TR)
Description:

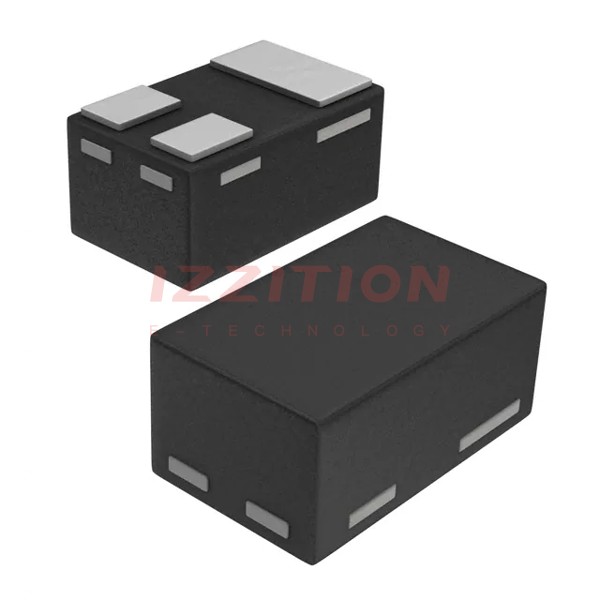

TRANS NPN 45V 0.1A DFN1006-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC847BL3-TP is an NPN silicon bipolar junction transistor (BJT) produced by Micro Commercial Co, which is a part of the BC847 series. This transistor is designed for general-purpose applications, particularly in audio frequency (AF) input stages and driver circuits. It is known for its high current gain, low collector-emitter saturation voltage, and low noise characteristics, making it suitable for a variety of electronic systems.

Key Specifications

Parameter Symbol Value Unit
Collector-emitter voltage VCEO 45 V
Collector-emitter voltage (with base open) VCES 50 V
Collector-base voltage VCBO 50 V
Emitter-base voltage VEBO 6 V
Collector current IC 100 mA
Peak collector current (tp ≤ 10 ms) ICM 200 mA
Total power dissipation (TS ≤ 71 °C) Ptot 330 mW
Junction temperature Tj 150 °C
Storage temperature Tstg -65 to 150 °C
Base-emitter voltage (VCE = 5 V, IC = 2 mA) VBE(ON) 0.58 to 0.66 V
Transition frequency (IC = 10 mA, VCE = 5 V) fT 250 MHz

Key Features

The BC847BL3-TP transistor boasts several key features:

  • High current gain: Ensures efficient amplification in various applications.
  • Low collector-emitter saturation voltage: Reduces power consumption and heat generation.
  • Low noise between 30 Hz and 15 kHz: Ideal for audio frequency applications where noise reduction is critical.
  • Pb-free (RoHS compliant) package: Environmentally friendly and compliant with regulatory standards.
  • Complementary types: BC857...-BC860 (PNP) transistors are available for complementary circuit designs.
  • AEC Q101 qualified: Meets automotive standards for reliability and performance.

Applications

The BC847BL3-TP transistor is suitable for a range of applications, including:

  • AF input stages: Due to its low noise characteristics, it is ideal for audio frequency input stages.
  • Driver applications: Its high current gain and low collector-emitter saturation voltage make it suitable for driving various loads.
  • General-purpose amplification: Can be used in a variety of general-purpose amplification circuits.

Q & A

  1. What is the collector-emitter voltage rating of the BC847BL3-TP transistor?

    The collector-emitter voltage rating is 45 V.

  2. What is the maximum collector current for the BC847BL3-TP transistor?

    The maximum collector current is 100 mA.

  3. What is the transition frequency of the BC847BL3-TP transistor?

    The transition frequency is 250 MHz at IC = 10 mA and VCE = 5 V.

  4. Is the BC847BL3-TP transistor RoHS compliant?

    Yes, the BC847BL3-TP transistor is Pb-free and RoHS compliant.

  5. What are the complementary types of the BC847BL3-TP transistor?

    The complementary types are BC857...-BC860 (PNP) transistors.

  6. What is the junction temperature rating of the BC847BL3-TP transistor?

    The junction temperature rating is 150 °C.

  7. What are the typical applications of the BC847BL3-TP transistor?

    Typical applications include AF input stages and driver applications.

  8. Is the BC847BL3-TP transistor qualified according to AEC Q101 standards?

    Yes, the BC847BL3-TP transistor is qualified according to AEC Q101 standards.

  9. What is the base-emitter voltage range for the BC847BL3-TP transistor?

    The base-emitter voltage range is 0.58 to 0.66 V at VCE = 5 V and IC = 2 mA.

  10. What is the total power dissipation rating for the BC847BL3-TP transistor at TS ≤ 71 °C?

    The total power dissipation rating is 330 mW at TS ≤ 71 °C.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:150 mW
Frequency - Transition:-
Operating Temperature:-
Mounting Type:Surface Mount
Package / Case:SC-101, SOT-883
Supplier Device Package:DFN1006-3
0 Remaining View Similar

In Stock

$0.04
17,348

Please send RFQ , we will respond immediately.
