Overview

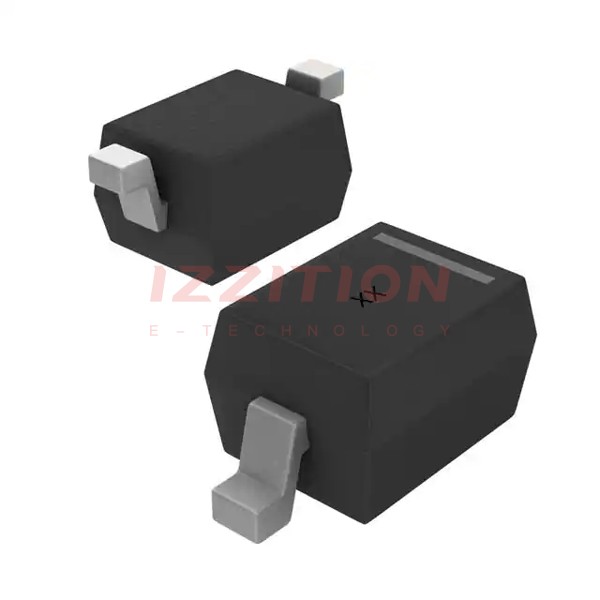

The BAS16WX-TP is a high-speed switching diode produced by Micro Commercial Co. (MCC). This component is designed for general-purpose switching applications and is known for its high conductance and fast switching speed. The BAS16WX-TP is packaged in a surface mount SOD323 format, making it ideal for automatic insertion in various electronic assemblies.
Key Specifications
| Parameter | Value |
|---|---|
| Maximum Forward Current | 250 mA |
| Maximum Reverse Voltage | 100 V |
| Power Dissipation | 350 mW |
| Package Type | SOD323 |
| Operating Temperature Range | -55°C to +150°C |
Key Features
- High conductance for efficient current handling
- Fast switching speed, suitable for high-frequency applications
- Surface mount package (SOD323) for easy automated assembly
- General-purpose switching diode, versatile for various applications
Applications
The BAS16WX-TP is suitable for a wide range of applications, including:
- General-purpose switching circuits
- High-frequency signal processing
- Automotive electronics
- Consumer electronics
- Industrial control systems
Q & A
- What is the maximum forward current of the BAS16WX-TP?
The maximum forward current of the BAS16WX-TP is 250 mA. - What is the maximum reverse voltage of the BAS16WX-TP?
The maximum reverse voltage of the BAS16WX-TP is 100 V. - What is the power dissipation of the BAS16WX-TP?
The power dissipation of the BAS16WX-TP is 350 mW. - What package type does the BAS16WX-TP use?
The BAS16WX-TP uses a SOD323 surface mount package. - What is the operating temperature range of the BAS16WX-TP?
The operating temperature range of the BAS16WX-TP is -55°C to +150°C. - Is the BAS16WX-TP suitable for high-frequency applications?
Yes, the BAS16WX-TP is suitable for high-frequency applications due to its fast switching speed. - Can the BAS16WX-TP be used in automotive electronics?
Yes, the BAS16WX-TP can be used in automotive electronics. - Is the BAS16WX-TP easy to assemble in automated production lines?
Yes, the BAS16WX-TP is designed for easy automated assembly due to its surface mount package. - What are some common applications of the BAS16WX-TP?
The BAS16WX-TP is commonly used in general-purpose switching circuits, high-frequency signal processing, consumer electronics, and industrial control systems. - Where can I find the datasheet for the BAS16WX-TP?
The datasheet for the BAS16WX-TP can be found on the official Micro Commercial Co. website or through distributors like Digi-Key and Mouser.
