Overview

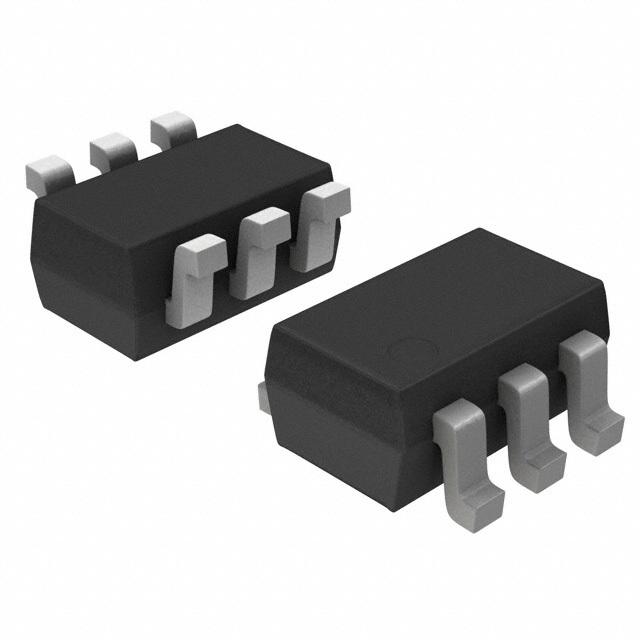

The BAS16TW-TP is a surface mount switching diode produced by Micro Commercial Co. This component is designed for high-performance applications requiring fast switching speeds and low power dissipation. It is packaged in a SOT-363 plastic case, making it ideal for automatic insertion and surface mount assembly. The BAS16TW-TP is lead-free and compliant with EU RoHS 2011/65/EU directives, and it features a halogen-free, green molding compound as per IEC61249 standards.
Key Specifications
| Parameter | Symbol | Units | Min. | Typ. | Max. |
|---|---|---|---|---|---|
| Peak Reverse Voltage | VRM | V | - | - | 100 |
| Peak Forward Current | IFM | mA | - | - | 215 |
| Peak Forward Surge Current (1μs) | IFSM | A | - | - | 4 |
| Power Dissipation | PTOT | mW | - | - | 200 |
| Maximum Forward Voltage | VF | V | 0.715@I_F=0.001A | 0.855@I_F=0.01A | 1.25@I_F=0.15A |
| Maximum DC Reverse Current | IR | μA | 0.03@25V | - | 2.5@75V |
| Maximum Junction Capacitance | CJ | pF | - | - | 1.5 |
| Maximum Reverse Recovery Time | TRR | ns | - | - | 4 |
| Operating Junction Temperature Range | TJ | °C | -55 | - | 150 |
| Storage Temperature Range | TSTG | °C | -55 | - | 150 |
| Thermal Resistance (Junction to Ambient) | RθJA | °C/W | - | - | 625 |
Key Features
- Fast switching speed, ideal for high-frequency applications.
- Surface mount package (SOT-363) suitable for automatic insertion.
- High conductance and low forward voltage drop.
- Lead-free and RoHS compliant, with a halogen-free, green molding compound.
- Low current leakage and low power dissipation (200 mW).
- Operating junction temperature range of -55°C to +150°C.
- Thermal resistance of 625°C/W (junction to ambient).
Applications
- Switching power supplies and DC-DC converters.
- Rectification circuits in power supplies and motor drives.
- Inverters and frequency converters.
- Welding equipment and other high-power applications.
- Automotive and industrial control systems.
Q & A
- What is the peak reverse voltage of the BAS16TW-TP diode?
The peak reverse voltage of the BAS16TW-TP diode is 100V. - What is the maximum forward current of the BAS16TW-TP diode?
The maximum forward current of the BAS16TW-TP diode is 215mA. - What is the power dissipation rating of the BAS16TW-TP diode?
The power dissipation rating of the BAS16TW-TP diode is 200mW. - Is the BAS16TW-TP diode RoHS compliant?
Yes, the BAS16TW-TP diode is lead-free and compliant with EU RoHS 2011/65/EU directives. - What is the operating junction temperature range of the BAS16TW-TP diode?
The operating junction temperature range of the BAS16TW-TP diode is -55°C to +150°C. - What is the thermal resistance of the BAS16TW-TP diode?
The thermal resistance (junction to ambient) of the BAS16TW-TP diode is 625°C/W. - What is the maximum forward voltage of the BAS16TW-TP diode?
The maximum forward voltage of the BAS16TW-TP diode varies with current: 0.715V @ 0.001A, 0.855V @ 0.01A, and 1.25V @ 0.15A. - What is the maximum reverse recovery time of the BAS16TW-TP diode?
The maximum reverse recovery time of the BAS16TW-TP diode is 4ns. - What package type does the BAS16TW-TP diode use?
The BAS16TW-TP diode uses a SOT-363 plastic package. - Is the BAS16TW-TP diode suitable for high-frequency applications?
Yes, the BAS16TW-TP diode is suitable for high-frequency applications due to its fast switching speed.
