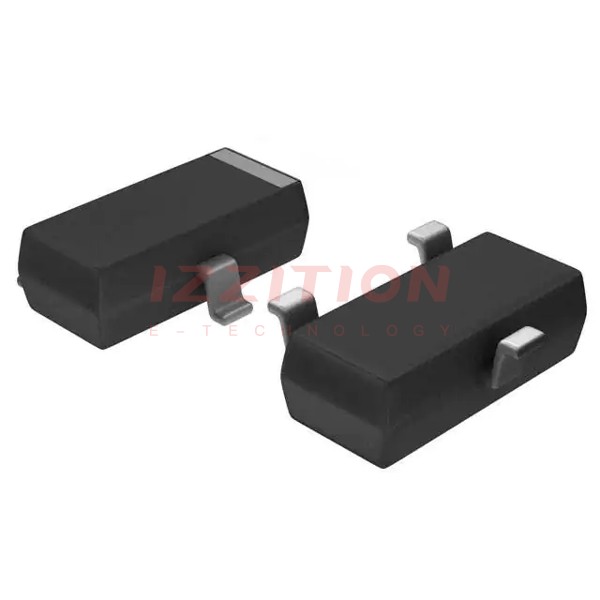

BAS 70-05 E6433
  • Share:

Infineon Technologies BAS 70-05 E6433

Manufacturer No:
BAS 70-05 E6433
Manufacturer:
Infineon Technologies
Package:
Bulk
Description:
SCHOTTKY DIODE
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BAS 70-05 E6433 is a silicon Schottky diode produced by Infineon Technologies. This diode is designed for high-speed switching applications and is known for its high performance and reliability. It is part of the BAS70-05 series, which is widely used in various electronic circuits for its excellent switching characteristics and low forward voltage drop.

Key Specifications

ParameterValue
Voltage Rating (V)70 V
Current Rating (I)70 mA
Forward Voltage Drop (Vf)
Reverse Current (Ir)
Package TypeSOT23
Operating Temperature Range-55°C to +150°C
Pb-free (RoHS compliant)Yes

Key Features

  • General-purpose diode for high-speed switching
  • Circuit protection and voltage clamping capabilities
  • High-level detecting and mixing applications
  • Low forward voltage drop, typically 0.35 V at 10 mA
  • High reverse voltage rating of 70 V
  • Pb-free (RoHS compliant) package

Applications

The BAS 70-05 E6433 is suitable for a variety of applications, including:

  • High-speed switching circuits
  • Circuit protection and voltage clamping
  • High-level detecting and mixing
  • Automotive and industrial electronics
  • Consumer electronics requiring high reliability and performance

Q & A

  1. What is the voltage rating of the BAS 70-05 E6433?
    The voltage rating of the BAS 70-05 E6433 is 70 V.
  2. What is the current rating of the BAS 70-05 E6433?
    The current rating of the BAS 70-05 E6433 is 70 mA.
  3. What is the typical forward voltage drop of the BAS 70-05 E6433?
    The typical forward voltage drop is 0.35 V at 10 mA.
  4. Is the BAS 70-05 E6433 Pb-free and RoHS compliant?
    Yes, the BAS 70-05 E6433 is Pb-free and RoHS compliant.
  5. What is the operating temperature range of the BAS 70-05 E6433?
    The operating temperature range is -55°C to +150°C.
  6. What are the common applications of the BAS 70-05 E6433?
    Common applications include high-speed switching circuits, circuit protection, voltage clamping, and high-level detecting and mixing.
  7. What package type does the BAS 70-05 E6433 come in?
    The BAS 70-05 E6433 comes in an SOT23 package.
  8. Can the BAS 70-05 E6433 be used in automotive electronics?
    Yes, it can be used in automotive and industrial electronics due to its high reliability and performance.
  9. Is the BAS 70-05 E6433 suitable for consumer electronics?
    Yes, it is suitable for consumer electronics requiring high reliability and performance.
  10. Where can I find the datasheet for the BAS 70-05 E6433?
    The datasheet can be found on the official Infineon Technologies website or through authorized distributors like Semikart or Express Technology Group.

Product Attributes

Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):70 V
Current - Average Rectified (Io) (per Diode):70mA (DC)
Voltage - Forward (Vf) (Max) @ If:1 V @ 15 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):100 ps
Current - Reverse Leakage @ Vr:100 nA @ 50 V
Operating Temperature - Junction:150°C (Max)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:PG-SOT23
0 Remaining View Similar

In Stock

$0.08
7,748

Please send RFQ , we will respond immediately.
