Overview
The LM2904AQTH-13 is a high-performance, quad operational amplifier (op-amp) produced by Diodes Incorporated. This device is part of the LM2904Q/LM2904AQ series, which is designed to meet the stringent requirements of automotive and industrial applications. The LM2904AQTH-13 is qualified to AEC-Q100 Grade 1, ensuring its reliability and performance in harsh environments.

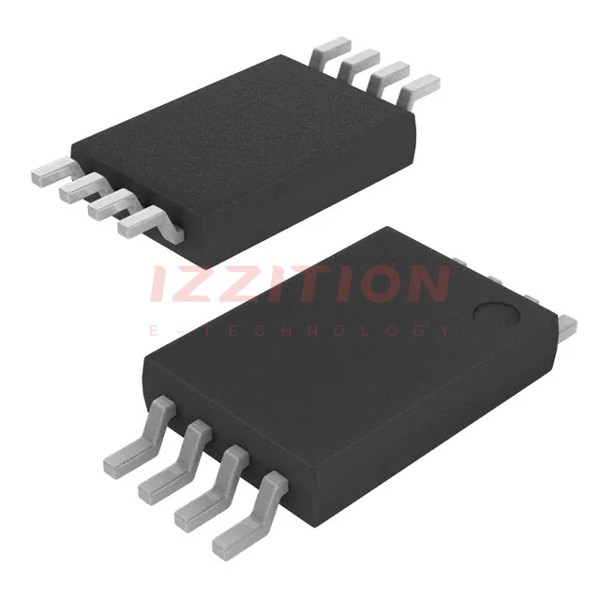

This op-amp is known for its low input offset voltage, high gain, and low supply current, making it suitable for a wide range of analog signal processing tasks. The device is available in a TSSOP-8 package, which is compact and suitable for space-constrained designs.
Key Specifications
| Parameter | Value | Unit | Conditions |
|---|---|---|---|
| Supply Voltage Range | ±5 to ±15 | V | |
| Operating Temperature Range | −40 to 125 | °C | |
| Storage Temperature Range | −65 to 150 | °C | |
| Supply Current (per amplifier) | 0.7 to 1.2 | mA | VCC = ±15 V, VO = 2.5 V, No load |
| Input Offset Voltage | 2 to 5 | mV | TA = 25°C |
| Slew Rate at Unity Gain | 0.5 | V/μs | RL = 1 MΩ, CL = 30 pF |
| Short-Circuit Output Current | ±40 to ±60 | mA | VCC at 5 V, GND at −5 V, VO = 0 |
| ESD Protection | > 500 V | MIL-STD-883, Method 3015 |
Key Features
- AEC-Q100 Grade 1 Qualified: Ensures reliability and performance in automotive and harsh industrial environments.
- Low Supply Current: Independent of supply voltage, typically 0.7 mA per amplifier.
- High Gain: Suitable for various analog signal processing tasks.
- Extended Temperature Range: Operates from −40°C to 125°C and stores from −65°C to 150°C.
- Lead-Free and RoHS Compliant: Totally lead-free, halogen-free, and antimony-free, adhering to EU RoHS directives.
- High ESD Protection: Exceeds 500 V per MIL-STD-883, Method 3015.
- Compact Packaging: Available in TSSOP-8, MSOP-8, and SO-8 packages.
Applications
- Automotive Systems: Suitable for various automotive applications requiring high reliability and performance.
- Industrial Control Systems: Used in industrial control systems, sensors, and actuators.
- Medical Devices: Can be used in medical devices that require high precision and reliability.
- Aerospace and Defense: Applicable in aerospace and defense systems due to its robust performance and reliability.
- Consumer Electronics: Used in consumer electronics where low power consumption and high performance are required.
Q & A
- What is the operating temperature range of the LM2904AQTH-13?
The operating temperature range is from −40°C to 125°C.
- Is the LM2904AQTH-13 RoHS compliant?
- What is the typical supply current per amplifier?
The typical supply current per amplifier is 0.7 mA.
- What is the slew rate at unity gain for the LM2904AQTH-13?
The slew rate at unity gain is 0.5 V/μs.
- Does the LM2904AQTH-13 have ESD protection?
- In what packages is the LM2904AQTH-13 available?
- Is the LM2904AQTH-13 suitable for automotive applications?
- What is the storage temperature range for the LM2904AQTH-13?
- What is the input offset voltage of the LM2904AQTH-13?
- Can the LM2904AQTH-13 be used in industrial control systems?
