Overview

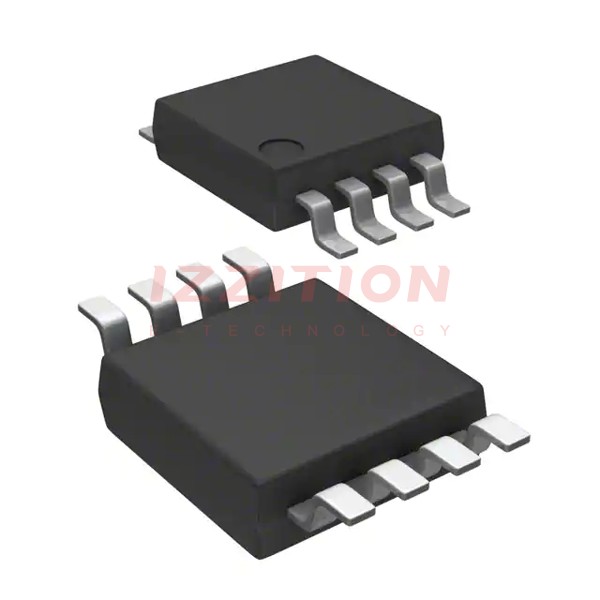

The MAX1272EUA+T is a fault-protected, 12-bit analog-to-digital converter (ADC) produced by Maxim Integrated, which is now a part of Analog Devices Inc. This component is designed to offer high accuracy and reliability in various industrial and automotive applications. It features software-selectable input ranges, making it versatile for different measurement requirements.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 12 bits |
| Input Range | Software-selectable |
| Conversion Rate | Up to 100 kSPS |
| Operating Voltage | 4.75V to 5.25V |
| Operating Temperature | -40°C to +85°C |
| Package Type | 16-pin TSSOP |
| Fault Protection | Yes |
Key Features
- Fault-protected inputs to prevent damage from overvoltage conditions
- Software-selectable input ranges for flexibility in different applications
- High accuracy and linearity
- Low power consumption
- Operating temperature range from -40°C to +85°C
Applications
The MAX1272EUA+T is suitable for a variety of applications, including:
- Industrial automation and control systems
- Automotive systems, such as engine control and safety systems
- Medical devices requiring high accuracy and reliability
- Test and measurement equipment
Q & A
- What is the resolution of the MAX1272EUA+T ADC?
The MAX1272EUA+T has a resolution of 12 bits. - What is the input range of the MAX1272EUA+T?
The input range is software-selectable. - What is the maximum conversion rate of the MAX1272EUA+T?
The maximum conversion rate is up to 100 kSPS. - What is the operating voltage range of the MAX1272EUA+T?
The operating voltage range is from 4.75V to 5.25V. - Is the MAX1272EUA+T fault-protected?
Yes, the MAX1272EUA+T has fault-protected inputs. - What is the package type of the MAX1272EUA+T?
The package type is 16-pin TSSOP. - What is the operating temperature range of the MAX1272EUA+T?
The operating temperature range is from -40°C to +85°C. - What are some common applications of the MAX1272EUA+T?
Common applications include industrial automation, automotive systems, medical devices, and test and measurement equipment. - Who is the manufacturer of the MAX1272EUA+T?
The MAX1272EUA+T is manufactured by Maxim Integrated, which is now part of Analog Devices Inc. - Where can I find detailed specifications for the MAX1272EUA+T?
Detailed specifications can be found in the datasheet available on the Maxim Integrated website or through distributors like Digi-Key, Mouser, etc.
