Overview
The MAX1272CUA+ is a high-performance, low-power analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This device is part of the MAX1272 series, which is known for its high-speed conversion capabilities and low power consumption. The MAX1272CUA+ is a single-channel ADC that operates with a single supply voltage, making it suitable for a variety of applications requiring precise analog-to-digital conversion.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12-bit |
| Sampling Rate | 87 ksamples/s |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC (Sample and Hold ADC) |
| Power Dissipation | 727 mW |
| Reference Type | External, Internal |
| Reference Voltage | 4.75 V |
| Supply Voltage | Single +4.75V to +5.25V |

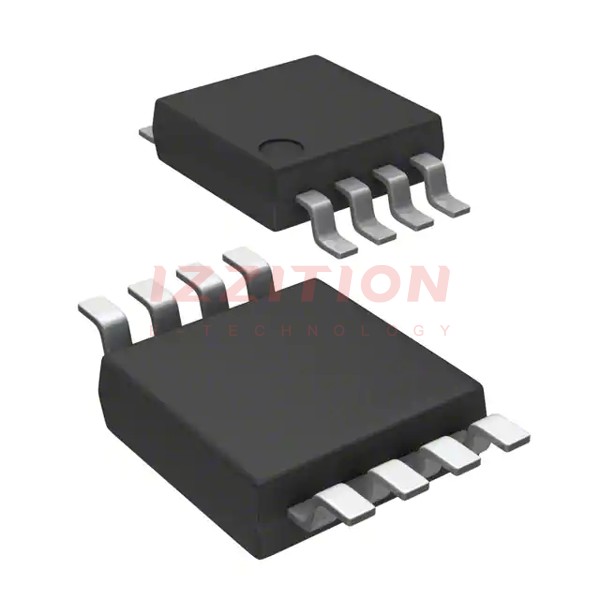

| Package | μMAX-10 (10-pin) |
| Operating Temperature Range | -40°C to +85°C |
Key Features
- High-speed conversion rate of up to 87 ksamples/s.
- Low power consumption with power-down modes to reduce current to 1µA (max) in full power-down mode.
- Single-ended analog input with sample and hold capability.
- Standard SPI/QSPI/MICROWIRE interface for easy integration with digital signal processors (DSPs) and microcontrollers.
- Internal and external reference options with a reference voltage of 4.75 V.
- Compact μMAX-10 package, suitable for space-constrained applications.
Applications
The MAX1272CUA+ is ideal for various applications that require high-speed, low-power analog-to-digital conversion. These include:
- Industrial process control systems.
- Motor control systems.
- Base-station applications.
- Medical devices requiring precise analog-to-digital conversion.
- Aerospace and defense systems where low power and high accuracy are critical.
Q & A
- What is the resolution of the MAX1272CUA+ ADC?
The MAX1272CUA+ has a 12-bit resolution.
- What is the sampling rate of the MAX1272CUA+?
The sampling rate of the MAX1272CUA+ is up to 87 ksamples/s.
- What type of analog input does the MAX1272CUA+ support?
The MAX1272CUA+ supports single-ended analog inputs.
- What data interface does the MAX1272CUA+ use?
The MAX1272CUA+ uses a standard SPI/QSPI/MICROWIRE interface.
- What is the power dissipation of the MAX1272CUA+?
The power dissipation of the MAX1272CUA+ is approximately 727 mW.
- What are the reference options for the MAX1272CUA+?
The MAX1272CUA+ supports both internal and external reference options with a reference voltage of 4.75 V.
- What is the supply voltage range for the MAX1272CUA+?
The supply voltage range for the MAX1272CUA+ is from +4.75V to +5.25V.
- What is the operating temperature range of the MAX1272CUA+?
The operating temperature range of the MAX1272CUA+ is from -40°C to +85°C.
- What package type is the MAX1272CUA+ available in?
The MAX1272CUA+ is available in a μMAX-10 (10-pin) package.
- What are some typical applications for the MAX1272CUA+?
The MAX1272CUA+ is typically used in industrial process control, motor control, base-station applications, medical devices, and aerospace and defense systems.
