Overview

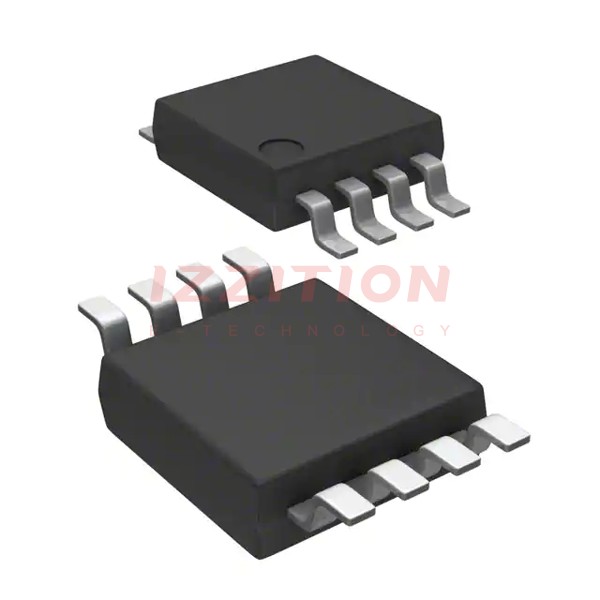

The MAX1273CUA+ is a 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This component is designed for high-accuracy and low-power applications, making it suitable for a variety of industrial, medical, and consumer electronics. The ADC features a single-ended input and operates with a 5V supply voltage, supporting both analog and digital operations. It is packaged in an MSOP-8 surface mount package, facilitating easy integration into compact designs.
Key Specifications
| Parameter | Value |
|---|---|
| Number of A/D Converters | 1 |
| Number of Bits | 12 |
| Input Type | Single Ended |
| Operating Supply Voltage | 4.75 V to 5.25 V |
| Integral Nonlinearity (INL) | ± 1 LSB |
| Operating Temperature | 0°C ~ 70°C |
| Package Type | MSOP-8 |
| Reference Type | External, Internal |
Key Features
- High-resolution 12-bit conversion
- Single-ended input
- Operating supply voltage: 4.75 V to 5.25 V
- Low integral nonlinearity (± 1 LSB)
- Surface mount MSOP-8 package
- Support for both external and internal reference
- Low power consumption
Applications
The MAX1273CUA+ is versatile and can be used in various applications, including:
- Industrial automation and control systems
- Medical devices requiring high accuracy and low power consumption
- Consumer electronics such as audio and video equipment
- Data acquisition systems
- Embedded systems and IoT devices
Q & A
- What is the resolution of the MAX1273CUA+ ADC?
The MAX1273CUA+ has a resolution of 12 bits. - What is the operating supply voltage range for the MAX1273CUA+?
The operating supply voltage range is 4.75 V to 5.25 V. - What type of input does the MAX1273CUA+ support?
The MAX1273CUA+ supports single-ended inputs. - What is the package type of the MAX1273CUA+?
The MAX1273CUA+ is packaged in an MSOP-8 surface mount package. - What is the operating temperature range for the MAX1273CUA+?
The operating temperature range is 0°C ~ 70°C. - Does the MAX1273CUA+ support external and internal references?
Yes, the MAX1273CUA+ supports both external and internal references. - What is the integral nonlinearity (INL) of the MAX1273CUA+?
The integral nonlinearity (INL) is ± 1 LSB. - In which types of applications is the MAX1273CUA+ commonly used?
The MAX1273CUA+ is commonly used in industrial automation, medical devices, consumer electronics, data acquisition systems, and embedded systems. - How many A/D converters does the MAX1273CUA+ contain?
The MAX1273CUA+ contains one A/D converter. - What is the typical sampling rate of the MAX1273CUA+?
The MAX1273CUA+ has a typical sampling rate of 87 kHz.
