Overview

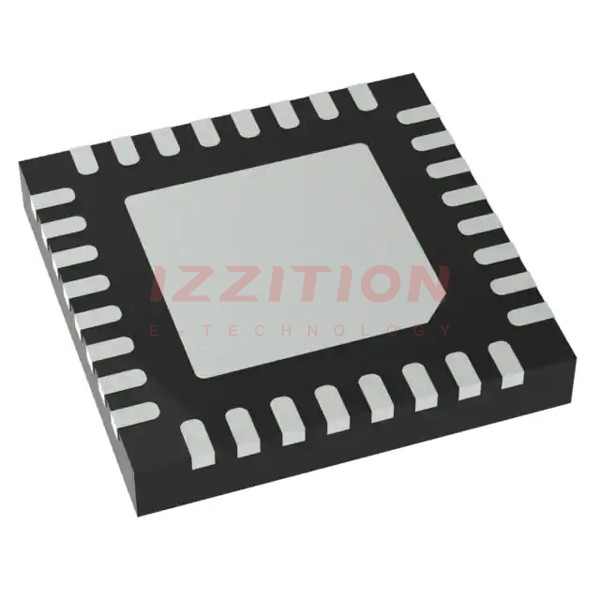

The LTC2351IUH-12#PBF is a high-performance, 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is part of the LTC2351 family and is known for its high speed and low power consumption, making it suitable for a variety of applications, particularly in automotive and industrial environments. The ADC features a serial interface and supports up to 1.5 million samples per second (Msps).
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Number of Channels | 6 |
| Sampling Rate | Up to 1.5 Msps |
| Interface | Serial |
| Package Type | 32-QFN (5x5 mm) |
| Operating Temperature Range | -40°C to 125°C |
| Voltage Supply | 2.5V or 5V |
Key Features
- High-speed conversion: Up to 1.5 Msps sampling rate.
- Low power consumption: Suitable for battery-powered and power-sensitive applications.
- High accuracy: 12-bit resolution with low noise and high linearity.
- Multiple channels: Supports up to 6 input channels.
- Automotive grade: Qualified for automotive applications with an operating temperature range of -40°C to 125°C.
- Compact package: 32-QFN (5x5 mm) package for space-efficient designs.
Applications
- Automotive systems: Suitable for various automotive applications due to its automotive grade and wide operating temperature range.
- Industrial control systems: Used in industrial automation, process control, and monitoring systems.
- Medical devices: Can be used in medical equipment requiring high accuracy and low power consumption.
- Test and measurement equipment: Ideal for high-speed data acquisition systems.
Q & A
- What is the resolution of the LTC2351IUH-12#PBF ADC? The resolution is 12 bits.
- How many input channels does the LTC2351IUH-12#PBF support? It supports up to 6 input channels.
- What is the maximum sampling rate of the LTC2351IUH-12#PBF? The maximum sampling rate is 1.5 Msps.
- What type of interface does the LTC2351IUH-12#PBF use? It uses a serial interface.
- What is the package type of the LTC2351IUH-12#PBF? It is packaged in a 32-QFN (5x5 mm).
- What is the operating temperature range of the LTC2351IUH-12#PBF? The operating temperature range is -40°C to 125°C.
- Is the LTC2351IUH-12#PBF suitable for automotive applications? Yes, it is qualified for automotive applications.
- What are the typical voltage supply options for the LTC2351IUH-12#PBF? The typical voltage supply options are 2.5V or 5V.
- Why is the LTC2351IUH-12#PBF considered high-performance? It is considered high-performance due to its high speed, low power consumption, and high accuracy.
- Where can the LTC2351IUH-12#PBF be used besides automotive applications? It can be used in industrial control systems, medical devices, and test and measurement equipment.
