Overview

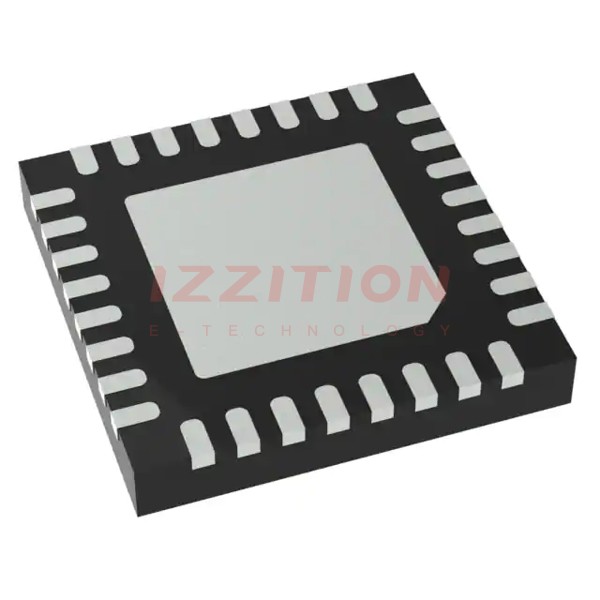

The LTC2351CUH-12#TRPBF is a 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This integrated circuit is designed for high-performance data acquisition and features simultaneous sampling of up to six input channels. It is housed in a 32-lead QFN (5x5) package, making it suitable for a variety of applications requiring precise and efficient analog-to-digital conversion.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC ADC 12BIT 1.5MSPS 32-QFN |
| Voltage - Supply, Digital | 2.7 V ~ 3.6 V |
| Voltage - Supply, Analog | 2.7 V ~ 3.6 V |
| Supplier Device Package | 32-QFN (5x5) |
| Sampling Rate (Per Second) | 1.5M |
| Reference Type | External, Internal |
| Ratio - S/H:ADC | 6:1 |
| Operating Temperature | 0°C ~ 70°C |
| Number of Inputs | 6 |
| Number of Bits | 12 |
| Number of A/D Converters | 1 |
| Input Type | Differential, Pseudo-Differential |
| Data Interface | SPI |
| Configuration | S/H-MUX-ADC |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Key Features
- Simultaneous sampling of up to six input channels
- 12-bit resolution with a sampling rate of 1.5 MSPS
- External or internal reference options
- Differential and pseudo-differential input types
- SPI data interface for easy communication
- Compact 32-lead QFN (5x5) package
- Operating temperature range of 0°C to 70°C
- Lead-free and RoHS compliant
Applications
The LTC2351CUH-12#TRPBF is versatile and can be used in a variety of applications, including:
- Data acquisition systems
- Industrial control systems
- Medical devices requiring precise analog-to-digital conversion
- Aerospace and defense systems
- Automotive systems
- Test and measurement equipment
Q & A
- What is the resolution of the LTC2351CUH-12#TRPBF ADC?
The LTC2351CUH-12#TRPBF has a 12-bit resolution. - What is the sampling rate of the LTC2351CUH-12#TRPBF?
The sampling rate is 1.5 MSPS. - How many input channels does the LTC2351CUH-12#TRPBF support?
The LTC2351CUH-12#TRPBF supports up to six input channels. - What types of input are supported by the LTC2351CUH-12#TRPBF?
The LTC2351CUH-12#TRPBF supports differential and pseudo-differential inputs. - What is the data interface of the LTC2351CUH-12#TRPBF?
The data interface is SPI. - What is the package type of the LTC2351CUH-12#TRPBF?
The LTC2351CUH-12#TRPBF is housed in a 32-lead QFN (5x5) package. - Is the LTC2351CUH-12#TRPBF RoHS compliant?
Yes, the LTC2351CUH-12#TRPBF is lead-free and RoHS compliant. - What is the operating temperature range of the LTC2351CUH-12#TRPBF?
The operating temperature range is 0°C to 70°C. - Can the LTC2351CUH-12#TRPBF use an external or internal reference?
Yes, the LTC2351CUH-12#TRPBF can use either an external or internal reference. - What is the moisture sensitivity level (MSL) of the LTC2351CUH-12#TRPBF?
The MSL is 1 (Unlimited).
