Overview

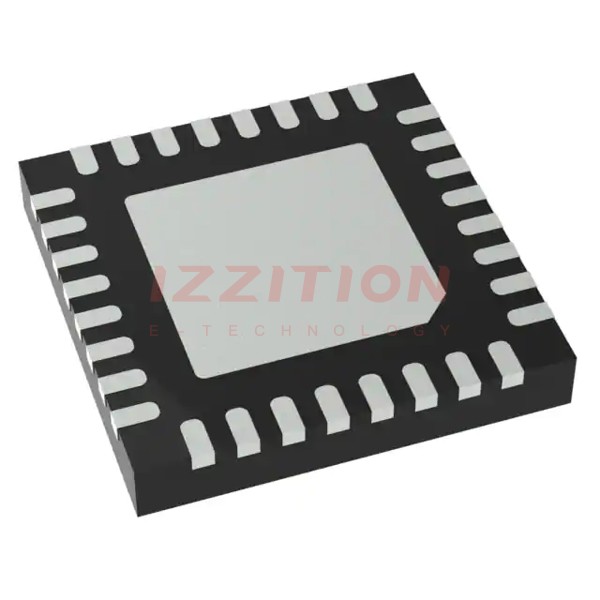

The LTC2351HUH-12#TRPBF is a high-performance, 12-bit, 6-channel analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This device is part of the LTC2351-12 series and is known for its high accuracy, low noise, and robust performance. It is packaged in a 32-pin QFN (5x5 mm) package, making it suitable for a variety of applications where space is a concern.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Number of Channels | 6 |
| Conversion Rate | Up to 200ksps |
| Input Range | 0V to 5V (or other ranges depending on configuration) |
| Power Supply | Single 2.5V or 3.3V supply |
| Package Type | 32-QFN (5x5 mm) |
| Operating Temperature | -40°C to 125°C |
| Noise Performance | Typically 1.2 LSB RMS noise at 200ksps |
Key Features
- High accuracy with low noise performance, typically 1.2 LSB RMS noise at 200ksps.
- Supports up to 6 analog input channels.
- Flexible input range configurations.
- Low power consumption with a single 2.5V or 3.3V supply.
- Compact 32-pin QFN (5x5 mm) package.
- Wide operating temperature range from -40°C to 125°C.
Applications
The LTC2351HUH-12#TRPBF is suitable for a wide range of applications, including:
- Industrial automation and control systems.
- Medical devices requiring high precision and low noise.
- Aerospace and defense systems where reliability and accuracy are critical.
- Automotive systems, particularly those requiring robust performance over a wide temperature range.
- Data acquisition systems in various fields such as scientific research and testing equipment.
Q & A
- What is the resolution of the LTC2351HUH-12#TRPBF ADC?
The resolution of the LTC2351HUH-12#TRPBF is 12 bits. - How many analog input channels does the LTC2351HUH-12#TRPBF support?
The LTC2351HUH-12#TRPBF supports up to 6 analog input channels. - What is the typical noise performance of the LTC2351HUH-12#TRPBF at 200ksps?
The typical noise performance is 1.2 LSB RMS noise at 200ksps. - What is the package type and size of the LTC2351HUH-12#TRPBF?
The package type is 32-QFN, and the size is 5x5 mm. - What is the operating temperature range of the LTC2351HUH-12#TRPBF?
The operating temperature range is from -40°C to 125°C. - What are the typical power supply requirements for the LTC2351HUH-12#TRPBF?
The device operates on a single 2.5V or 3.3V supply. - What are some common applications for the LTC2351HUH-12#TRPBF?
Common applications include industrial automation, medical devices, aerospace and defense systems, automotive systems, and data acquisition systems. - How many conversions per second can the LTC2351HUH-12#TRPBF perform?
The LTC2351HUH-12#TRPBF can perform up to 200,000 conversions per second (200ksps). - Is the LTC2351HUH-12#TRPBF suitable for high-precision applications?
Yes, the LTC2351HUH-12#TRPBF is highly suitable for high-precision applications due to its low noise and high accuracy. - Where can I purchase the LTC2351HUH-12#TRPBF?
The LTC2351HUH-12#TRPBF can be purchased from various electronic component distributors such as Mouser, Digi-Key, and Heisener.
