Overview

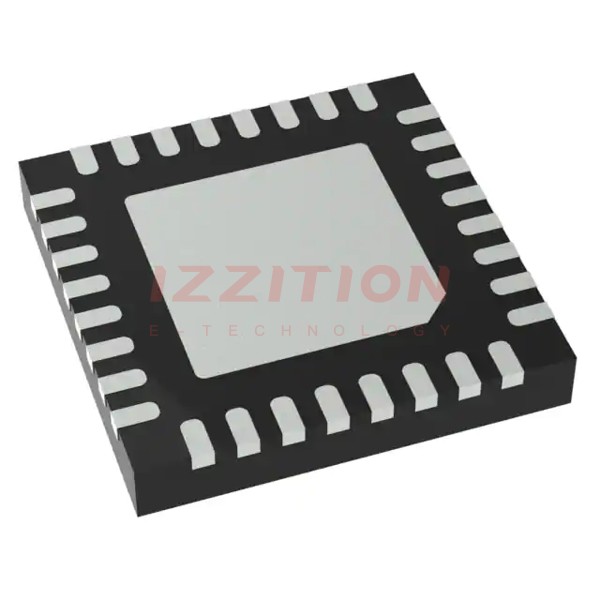

The LTC2351HUH-12#PBF is a high-performance, 12-bit analog-to-digital converter (ADC) manufactured by Analog Devices Inc. This device is part of the LTC2351-12 series and is known for its high accuracy and low noise characteristics. It is packaged in a 32-pin QFN (5x5 mm) package, making it suitable for a variety of applications where space is limited.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Number of Inputs | 6 |
| Package Type | 32-QFN (5x5 mm) |
| Supply Voltage | 2.5V or 5V |
| Sampling Rate | Up to 204.8 kSPS |
| INL (Integral Nonlinearity) | ±2 LSB |
| DNL (Differential Nonlinearity) | ±1 LSB |
| SNR (Signal-to-Noise Ratio) | Up to 82.5 dB |
| Operating Temperature Range | -40°C to 125°C |
Key Features
- High accuracy with ±2 LSB INL and ±1 LSB DNL
- Low noise performance with up to 82.5 dB SNR
- Support for both 2.5V and 5V supply voltages
- Up to 204.8 kSPS sampling rate
- Six input channels
- Compact 32-pin QFN (5x5 mm) package
Applications
The LTC2351HUH-12#PBF is suitable for a wide range of applications, including industrial control systems, medical devices, data acquisition systems, and automotive electronics. Its high accuracy and low noise make it particularly useful in environments where precise analog-to-digital conversion is critical.
Q & A
- What is the resolution of the LTC2351HUH-12#PBF ADC?
The resolution is 12 bits. - How many input channels does the LTC2351HUH-12#PBF have?
It has six input channels. - What is the package type of the LTC2351HUH-12#PBF?
The package type is 32-pin QFN (5x5 mm). - What are the supported supply voltages for the LTC2351HUH-12#PBF?
The device supports both 2.5V and 5V supply voltages. - What is the maximum sampling rate of the LTC2351HUH-12#PBF?
The maximum sampling rate is up to 204.8 kSPS. - What is the operating temperature range of the LTC2351HUH-12#PBF?
The operating temperature range is -40°C to 125°C. - What is the typical SNR of the LTC2351HUH-12#PBF?
The typical SNR is up to 82.5 dB. - What are some common applications for the LTC2351HUH-12#PBF?
Common applications include industrial control systems, medical devices, data acquisition systems, and automotive electronics. - What is the INL (Integral Nonlinearity) of the LTC2351HUH-12#PBF?
The INL is ±2 LSB. - What is the DNL (Differential Nonlinearity) of the LTC2351HUH-12#PBF?
The DNL is ±1 LSB.
