Overview
The LTC2230CUP, manufactured by Analog Devices Inc., is a high-performance 10-bit analog-to-digital converter (ADC) designed for digitizing high-frequency, wide dynamic range signals. This ADC operates at a sampling rate of 170 Msps and is particularly suited for demanding communications applications. It features excellent AC performance, including a signal-to-noise ratio (SNR) of 61 dB and a spurious free dynamic range (SFDR) of 75 dB for signals up to 200 MHz. The device is known for its ultralow jitter of 0.15 ps RMS, enabling the undersampling of IF frequencies with excellent noise performance.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Bits | 10 |
| Sampling Rate | 170 Msps |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.1 V ~ 3.5 V |
| Voltage - Supply, Digital | 3.1 V ~ 3.5 V |

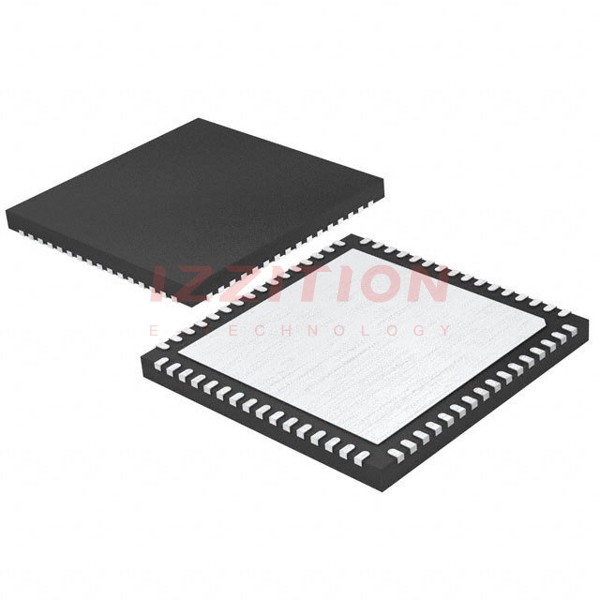

| Package | 64-WFQFN Exposed Pad |
| Power Dissipation | 890 mW |
| SNR up to 140 MHz Input | 61 dB |
| SFDR up to 200 MHz Input | 75 dB |
| Full Power Bandwidth S/H | 775 MHz |
Key Features
- High sampling rate of 170 Msps
- Excellent AC performance with 61 dB SNR and 75 dB SFDR up to 200 MHz
- Ultralow jitter of 0.15 ps RMS
- Single 3.3V supply
- Low power dissipation of 890 mW
- Digital outputs available in LVDS, CMOS, or demultiplexed CMOS formats
- Selectable input ranges: ±0.5V or ±1V
- No missing codes
- Optional clock duty cycle stabilizer
- Shutdown and nap modes for power management
- Data ready output clock
- Separate output power supply for CMOS output swing adjustment (0.5V to 3.6V)
Applications
- Wireless and Wired Broadband Communication
- Cable Head-End Systems
- Power Amplifier Linearization
- Communications Test Equipment
Q & A
- What is the sampling rate of the LTC2230CUP?
The LTC2230CUP has a sampling rate of 170 Msps.
- What are the available digital output formats for the LTC2230CUP?
The digital outputs can be either differential LVDS or single-ended CMOS, with options for demultiplexed CMOS outputs running at half data rate.
- What is the power supply requirement for the LTC2230CUP?
The LTC2230CUP operates on a single 3.3V supply, with separate power supply options for the digital output buffers.
- What are the input ranges for the LTC2230CUP?
The LTC2230CUP has selectable input ranges of ±0.5V or ±1V.
- What is the package type of the LTC2230CUP?
The LTC2230CUP is packaged in a 64-WFQFN Exposed Pad.
- What are the key applications of the LTC2230CUP?
The LTC2230CUP is used in wireless and wired broadband communication, cable head-end systems, power amplifier linearization, and communications test equipment.
- Does the LTC2230CUP support clock duty cycle stabilization?
Yes, the LTC2230CUP includes an optional clock duty cycle stabilizer for high performance across a wide range of clock duty cycles.
- What is the power dissipation of the LTC2230CUP?
The power dissipation of the LTC2230CUP is 890 mW.
- Does the LTC2230CUP have any power management features?
Yes, the LTC2230CUP includes shutdown and nap modes for power management.
- What is the significance of the ultralow jitter in the LTC2230CUP?
The ultralow jitter of 0.15 ps RMS allows for the undersampling of IF frequencies with excellent noise performance.
