Overview

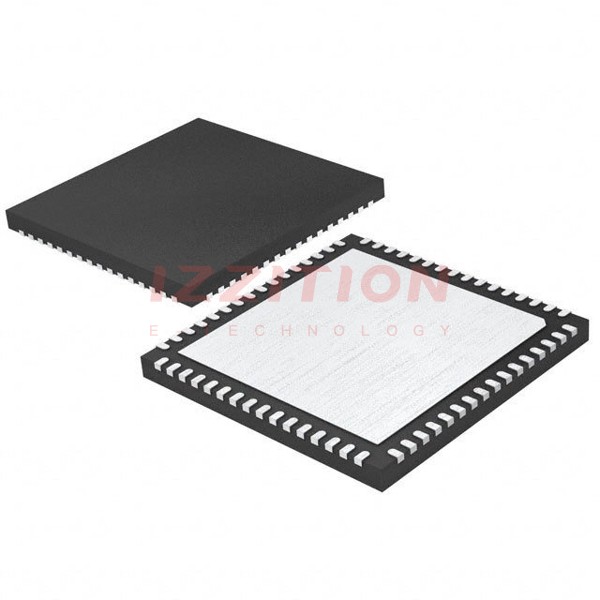

The LTC2231CUP#PBF is a high-performance, 10-bit, 135Msps pipelined analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed to offer high-speed conversion with low power consumption, making it suitable for a variety of high-frequency signal processing applications.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 10 bits |
| Sampling Rate | 135 Msps |
| Package Type | 64-QFN |
| Power Supply | 1.8V to 3.3V |
| Operating Temperature | -40°C to 85°C |
| SNR (Signal-to-Noise Ratio) | Typically 61.5 dBFS at f_IN = 70 MHz |
| SFDR (Spurious Free Dynamic Range) | Typically 85 dBc at f_IN = 70 MHz |
| Power Consumption | Approximately 430 mW at 135 Msps |
Key Features
- High-speed conversion rate of up to 135 Msps
- Low power consumption, making it energy-efficient
- High signal-to-noise ratio (SNR) and spurious free dynamic range (SFDR) for accurate signal processing
- Compact 64-QFN package for space-efficient designs
- Wide operating temperature range from -40°C to 85°C
- Support for various power supply voltages from 1.8V to 3.3V
Applications
The LTC2231CUP#PBF is versatile and can be used in a variety of applications, including:
- High-speed data acquisition systems
- Wireless communication systems
- Radar and imaging systems
- Medical imaging and diagnostic equipment
- Aerospace and defense systems
- High-performance test and measurement equipment
Q & A
- What is the resolution of the LTC2231CUP#PBF ADC?
The resolution of the LTC2231CUP#PBF is 10 bits. - What is the maximum sampling rate of the LTC2231CUP#PBF?
The maximum sampling rate is 135 Msps. - What is the package type of the LTC2231CUP#PBF?
The package type is 64-QFN. - What is the typical power consumption of the LTC2231CUP#PBF at 135 Msps?
The typical power consumption is approximately 430 mW. - What is the operating temperature range of the LTC2231CUP#PBF?
The operating temperature range is from -40°C to 85°C. - What are the typical SNR and SFDR values of the LTC2231CUP#PBF?
The typical SNR is 61.5 dBFS and the typical SFDR is 85 dBc at f_IN = 70 MHz. - What are some common applications of the LTC2231CUP#PBF?
Common applications include high-speed data acquisition systems, wireless communication systems, radar and imaging systems, medical imaging, aerospace and defense systems, and high-performance test and measurement equipment. - What is the power supply voltage range for the LTC2231CUP#PBF?
The power supply voltage range is from 1.8V to 3.3V. - Is the LTC2231CUP#PBF suitable for high-frequency signal processing?
Yes, it is designed for high-frequency signal processing due to its high sampling rate and low noise characteristics. - Where can I find detailed specifications and datasheets for the LTC2231CUP#PBF?
Detailed specifications and datasheets can be found on the official Analog Devices website, as well as on distributor websites such as Mouser and Digi-Key.
