Overview

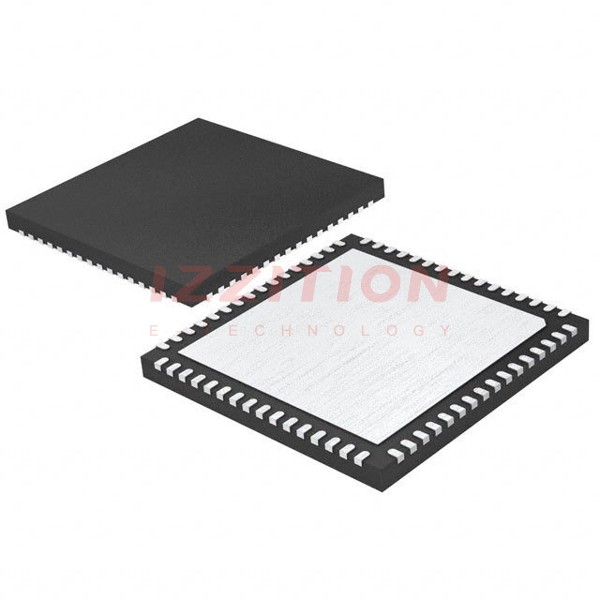

The LTC2230IUP#PBF is a high-performance 10-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This pipelined ADC is designed for high-speed applications, offering a sampling rate of 170 MSPS. It features a single input and is packaged in a 64-lead QFN (9x9 mm) with an exposed pad, making it suitable for a variety of high-frequency and high-precision applications.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Bits | 10 |
| Sampling Rate | 170 MSPS |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Supply Voltage (Digital) | 3.1 V ~ 3.5 V |
| Supply Voltage (Analog) | 3.1 V ~ 3.5 V |
| Package / Case | 64-QFN (9x9 mm) |
| Operating Temperature | -40°C ~ 85°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Key Features
- Pipelined architecture for high-speed conversion
- Single input with differential or single-ended configuration
- LVDS and parallel data interface options
- External or internal reference options
- Low power consumption and high accuracy
- Compact 64-QFN (9x9 mm) package with exposed pad for thermal management
Applications
The LTC2230IUP#PBF is suitable for a wide range of high-speed and high-precision applications, including:
- Wireless communication systems
- Radar and surveillance systems
- Medical imaging and diagnostics
- High-speed data acquisition systems
- Test and measurement equipment
Q & A
- What is the sampling rate of the LTC2230IUP#PBF?
The sampling rate of the LTC2230IUP#PBF is 170 MSPS. - How many bits does the LTC2230IUP#PBF ADC have?
The LTC2230IUP#PBF is a 10-bit ADC. - What is the package type of the LTC2230IUP#PBF?
The LTC2230IUP#PBF is packaged in a 64-lead QFN (9x9 mm) with an exposed pad. - What are the supply voltage ranges for the LTC2230IUP#PBF?
The supply voltage ranges are 3.1 V ~ 3.5 V for both digital and analog supplies. - Is the LTC2230IUP#PBF RoHS compliant?
Yes, the LTC2230IUP#PBF is lead free and RoHS compliant. - What are the input types supported by the LTC2230IUP#PBF?
The LTC2230IUP#PBF supports both differential and single-ended inputs. - What is the operating temperature range of the LTC2230IUP#PBF?
The operating temperature range is -40°C ~ 85°C. - Does the LTC2230IUP#PBF have an internal or external reference option?
The LTC2230IUP#PBF supports both external and internal reference options. - What data interface options are available for the LTC2230IUP#PBF?
The LTC2230IUP#PBF offers LVDS and parallel data interface options. - What is the moisture sensitivity level (MSL) of the LTC2230IUP#PBF?
The MSL of the LTC2230IUP#PBF is 1 (Unlimited).
