Overview

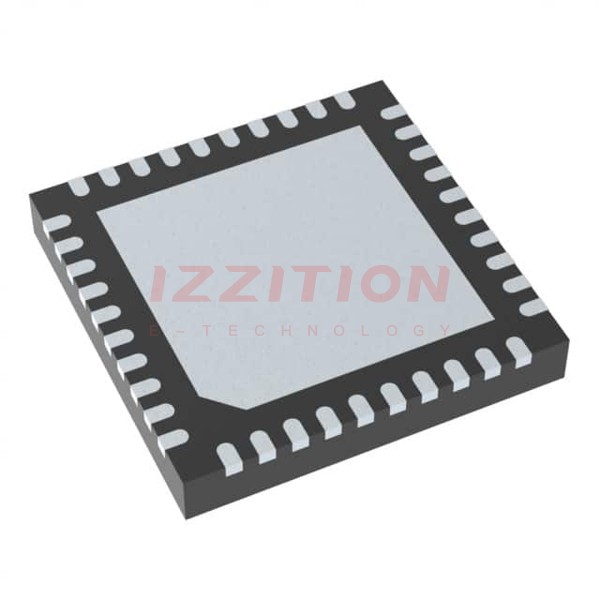

The LTC2151IUJ-12#PBF is a high-performance, 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is part of the LTC2151-12 series and is known for its high-speed conversion capabilities and low power consumption. It is packaged in a 40-pin QFN (6x6 mm) package, making it suitable for a variety of applications requiring high precision and compact design.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12 bits |
| Sampling Rate | Up to 210 Msps |
| Input Type | Single-ended |
| Interface | Parallel, Serial (SPI), LVDS |
| Package Type | 40-pin QFN (6x6 mm) |
| Operating Temperature Range | -40°C to 85°C |
| Power Consumption | Typically 1.1 W at 210 Msps |
Key Features
- High-speed conversion: Up to 210 Msps sampling rate.
- Low power consumption: Typically 1.1 W at 210 Msps.
- Flexible interface options: Parallel, Serial (SPI), and LVDS interfaces.
- Compact packaging: 40-pin QFN (6x6 mm) package.
- Wide operating temperature range: -40°C to 85°C.
- High accuracy and linearity: Ensures precise analog-to-digital conversion.
Applications
- Wireless communication systems: Base stations, handsets, and other wireless communication equipment.
- Medical imaging: MRI, CT scanners, and other medical imaging devices.
- Industrial control systems: High-speed data acquisition and control systems.
- Aerospace and defense: Radar systems, electronic warfare, and other defense applications.
- Test and measurement equipment: Oscilloscopes, signal analyzers, and other test equipment.
Q & A
- What is the resolution of the LTC2151IUJ-12#PBF ADC?
The resolution of the LTC2151IUJ-12#PBF is 12 bits. - What is the maximum sampling rate of the LTC2151IUJ-12#PBF?
The maximum sampling rate is up to 210 Msps. - What types of interfaces does the LTC2151IUJ-12#PBF support?
The device supports parallel, serial (SPI), and LVDS interfaces. - What is the package type of the LTC2151IUJ-12#PBF?
The package type is a 40-pin QFN (6x6 mm). - What is the operating temperature range of the LTC2151IUJ-12#PBF?
The operating temperature range is -40°C to 85°C. - How much power does the LTC2151IUJ-12#PBF typically consume at 210 Msps?
Typically, it consumes 1.1 W at 210 Msps. - What are some common applications of the LTC2151IUJ-12#PBF?
Common applications include wireless communication systems, medical imaging, industrial control systems, aerospace and defense, and test and measurement equipment. - Where can I find more detailed specifications for the LTC2151IUJ-12#PBF?
You can find detailed specifications on the official Analog Devices website, as well as on distributor websites like Digi-Key and Mouser. - Is the LTC2151IUJ-12#PBF available in different package options?
No, the LTC2151IUJ-12#PBF is specifically available in a 40-pin QFN (6x6 mm) package. - Can the LTC2151IUJ-12#PBF be used in high-speed data acquisition systems?
Yes, it is well-suited for high-speed data acquisition systems due to its high sampling rate and low power consumption.
