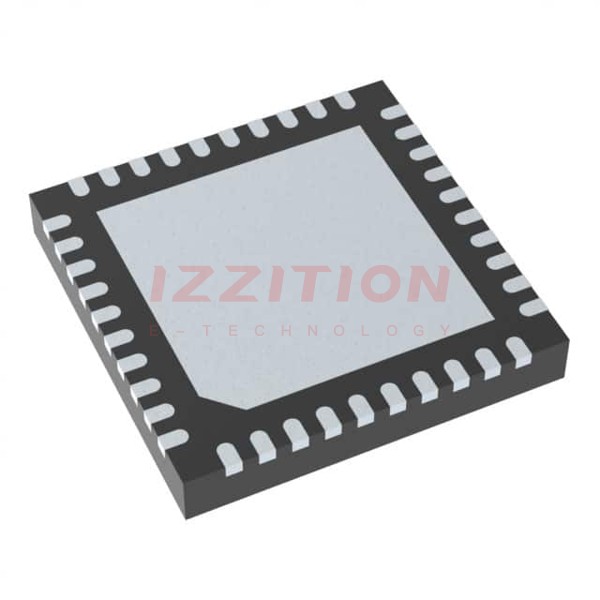

Analog Devices Inc. LTC2153IUJ-12#PBF

Manufacturer No:
LTC2153IUJ-12#PBF
Manufacturer:
Analog Devices Inc.
Package:
Tube
Description:
IC ADC 12BIT PIPELINED 40QFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The LTC2153IUJ-12#PBF is a high-performance, 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This pipelined ADC is designed to offer high speed and low power consumption, making it suitable for a variety of applications that require precise and efficient analog-to-digital conversion.

Key Specifications

ParameterValue
Resolution12 bits
Conversion RateUp to 105 MSPS
Input Range1 Vpp differential
Power ConsumptionTypically 240 mW at 105 MSPS
Supply Voltage1.8V to 3.3V
Package Type40-QFN (6x6 mm)
Operating Temperature-40°C to 85°C

Key Features

  • High-speed conversion rate of up to 105 MSPS
  • Low power consumption, typically 240 mW at 105 MSPS
  • High signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR)
  • Differential analog input
  • CMOS-compatible digital output
  • Compact 40-QFN (6x6 mm) package

Applications

  • Wireless communication systems
  • Medical imaging and diagnostics
  • Industrial control and automation
  • Aerospace and defense systems
  • High-speed data acquisition systems

Q & A

  1. What is the resolution of the LTC2153IUJ-12#PBF ADC? The resolution is 12 bits.
  2. What is the maximum conversion rate of the LTC2153IUJ-12#PBF? The maximum conversion rate is up to 105 MSPS.
  3. What is the typical power consumption of the LTC2153IUJ-12#PBF at 105 MSPS? The typical power consumption is 240 mW.
  4. What is the input range of the LTC2153IUJ-12#PBF? The input range is 1 Vpp differential.
  5. What is the package type of the LTC2153IUJ-12#PBF? The package type is 40-QFN (6x6 mm).
  6. What is the operating temperature range of the LTC2153IUJ-12#PBF? The operating temperature range is -40°C to 85°C.
  7. Is the LTC2153IUJ-12#PBF suitable for high-speed data acquisition systems? Yes, it is suitable for high-speed data acquisition systems due to its high conversion rate and low power consumption.
  8. Can the LTC2153IUJ-12#PBF be used in medical imaging applications? Yes, it can be used in medical imaging and diagnostics due to its high SNR and SFDR.
  9. What is the supply voltage range for the LTC2153IUJ-12#PBF? The supply voltage range is 1.8V to 3.3V.
  10. Is the LTC2153IUJ-12#PBF available in different package types? The specified model is available in a 40-QFN (6x6 mm) package, but other models in the series may have different package options.

Product Attributes

Number of Bits:12
Sampling Rate (Per Second):310M
Number of Inputs:1
Input Type:Differential
Data Interface:LVDS - Parallel
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:Pipelined
Reference Type:External, Internal
Voltage - Supply, Analog:1.74V ~ 1.9V
Voltage - Supply, Digital:1.74V ~ 1.9V
Features:-
Operating Temperature:-40°C ~ 85°C
Package / Case:40-WFQFN Exposed Pad
Supplier Device Package:40-QFN (6x6)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$116.12
4

Please send RFQ , we will respond immediately.
