Overview

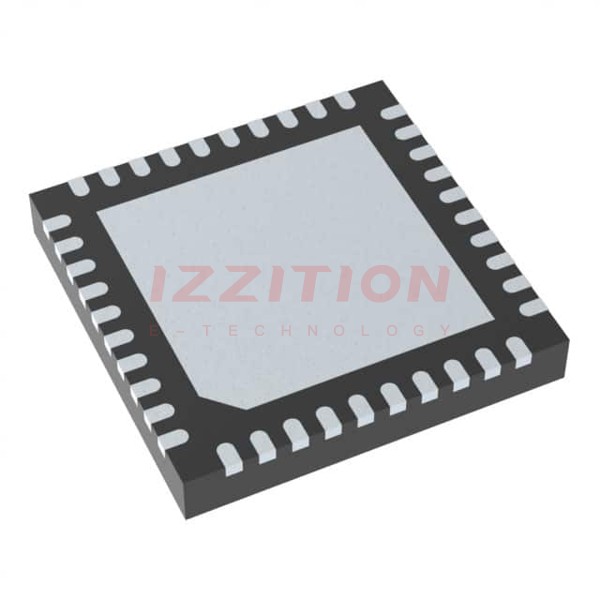

The LTC2150IUJ-12#TRPBF is a high-performance 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed for high-speed applications, offering a sampling rate of 170 million samples per second (MSPS). It features a pipelined architecture and supports both external and internal reference voltage, making it versatile for various dynamic applications.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Bits | 12 |
| Sampling Rate | 170 MSPS |
| Input Type | Differential |
| Data Interface | LVDS - Parallel/Serial (SPI) |
| Package Type | 40-QFN (6x6) Exposed Pad |
| Operating Temperature Range | -40°C to 85°C |
| Analog Supply Voltage | 1.7V to 1.9V |
Key Features
- High-speed 12-bit analog-to-digital conversion with a sampling rate of 170 MSPS.
- Pipelined architecture for efficient data conversion.
- Single differential input for precise signal processing.
- Supports both external and internal reference voltage.
- Surface mount technology with a 40-QFN (6x6) package.
- LVDS and parallel/serial (SPI) data interface options.
Applications
- High-speed data acquisition systems.
- Medical imaging and diagnostic equipment.
- Radar and communication systems.
- Industrial automation and control systems.
- Aerospace and defense applications requiring high-speed ADCs.
Q & A
- What is the sampling rate of the LTC2150IUJ-12#TRPBF?
The sampling rate is 170 million samples per second (MSPS). - What is the resolution of the LTC2150IUJ-12#TRPBF?
The resolution is 12 bits. - What type of input does the LTC2150IUJ-12#TRPBF support?
The input type is differential. - What data interfaces are supported by the LTC2150IUJ-12#TRPBF?
The component supports LVDS and parallel/serial (SPI) data interfaces. - What is the package type of the LTC2150IUJ-12#TRPBF?
The package type is 40-QFN (6x6) Exposed Pad. - What is the operating temperature range of the LTC2150IUJ-12#TRPBF?
The operating temperature range is -40°C to 85°C. - Can the LTC2150IUJ-12#TRPBF use both external and internal reference voltage?
Yes, it supports both external and internal reference voltage. - What is the analog supply voltage range for the LTC2150IUJ-12#TRPBF?
The analog supply voltage range is 1.7V to 1.9V. - In what types of applications is the LTC2150IUJ-12#TRPBF commonly used?
It is commonly used in high-speed data acquisition systems, medical imaging, radar and communication systems, industrial automation, and aerospace and defense applications. - Where can I find detailed specifications and datasheets for the LTC2150IUJ-12#TRPBF?
Detailed specifications and datasheets can be found on the official Analog Devices website, as well as on distributor websites such as Digi-Key, Mouser, and others.
