Overview
The ADRF5250BCPZ is a general-purpose, single-pole, five-throw (SP5T) RF switch manufactured by Analog Devices Inc. This device is designed to operate from 100 MHz to 6 GHz and is fabricated using a silicon process. It offers high isolation and low insertion loss, making it suitable for a variety of RF applications. The switch features a 1.8 V logic-compatible, 3-pin control interface and can operate with either a single positive supply voltage or a dual-supply configuration, including an optional internal negative voltage generator (NVG).
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Frequency Range | 100 MHz to 6 GHz | |
| Insertion Loss (On) | 1.3 dB (0.1 GHz to 2 GHz), 1.5 dB (2 GHz to 4 GHz), 1.8 dB (4 GHz to 6 GHz) | dB |
| Isolation (Off) | 55 dB (0.1 GHz to 2 GHz), 50 dB (2 GHz to 4 GHz), 46 dB (4 GHz to 6 GHz) | dB |
| Return Loss (On) | 15 dB (0.1 GHz to 2 GHz), 13 dB (2 GHz to 4 GHz and 4 GHz to 6 GHz) | dB |
| Supply Voltage (VDD) | 3.0 V to 5.25 V | V |
| Negative Supply Voltage (VSS) | -3.45 V to -3.15 V | V |
| Digital Control Voltage | 0 V to VDD | V |
| Maximum RF Input Power | 30 dBm (through path at TCASE = 105°C) | dBm |
| Case Temperature | -40°C to +105°C | °C |

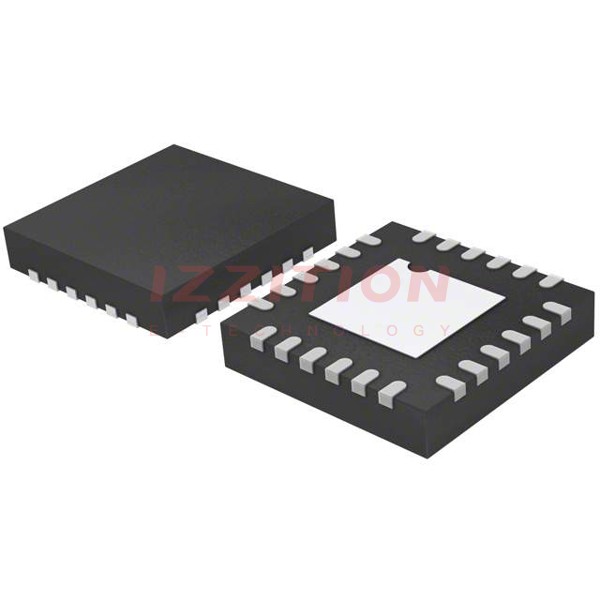

| Package Type | 24-lead LFCSP | |
| Package Dimensions | 4 mm x 4 mm | mm |
Key Features
- Single-pole, five-throw (SP5T) configuration for versatile RF switching applications.
- High isolation and low insertion loss from 100 MHz to 6 GHz.
- 1.8 V logic-compatible, 3-pin control interface.
- Single-supply or dual-supply operation with optional internal negative voltage generator (NVG).
- Non-reflective 50 Ω design.
- Fast switching times: rise time of 40 ns and fall time of 80 ns.
- High ESD rating: 3.5 kV HBM, Class 2.
- Operating temperature range from -40°C to +105°C.
Applications
- Cellular/4G infrastructure.
- Wireless infrastructure.
- Mobile radios.
- Test equipment.
Q & A
- What is the frequency range of the ADRF5250BCPZ?
The ADRF5250BCPZ operates from 100 MHz to 6 GHz.
- What type of package does the ADRF5250BCPZ come in?
The ADRF5250BCPZ is available in a 24-lead LFCSP package.
- What are the supply voltage options for the ADRF5250BCPZ?
The device can operate with a single positive supply voltage from 3.0 V to 5.25 V or a dual-supply configuration with an optional internal negative voltage generator (NVG).
- What is the typical insertion loss of the ADRF5250BCPZ?
The typical insertion loss is 1.3 dB from 0.1 GHz to 2 GHz, 1.5 dB from 2 GHz to 4 GHz, and 1.8 dB from 4 GHz to 6 GHz.
- What is the isolation between RFC and RFx (Off) for the ADRF5250BCPZ?
The isolation is typically 55 dB from 0.1 GHz to 2 GHz, 50 dB from 2 GHz to 4 GHz, and 46 dB from 4 GHz to 6 GHz.
- What are the switching times for the ADRF5250BCPZ?
The rise time is typically 40 ns and the fall time is typically 80 ns.
- What is the operating temperature range of the ADRF5250BCPZ?
The operating temperature range is from -40°C to +105°C.
- What are some common applications for the ADRF5250BCPZ?
Common applications include cellular/4G infrastructure, wireless infrastructure, mobile radios, and test equipment.
- Is the ADRF5250BCPZ ESD rated?
Yes, the device has a high ESD rating of 3.5 kV HBM, Class 2.
- How does the control interface of the ADRF5250BCPZ work?
The device features a 1.8 V logic-compatible, 3-pin control interface controlled through the V1, V2, and V3 digital control voltage pins.
