Overview

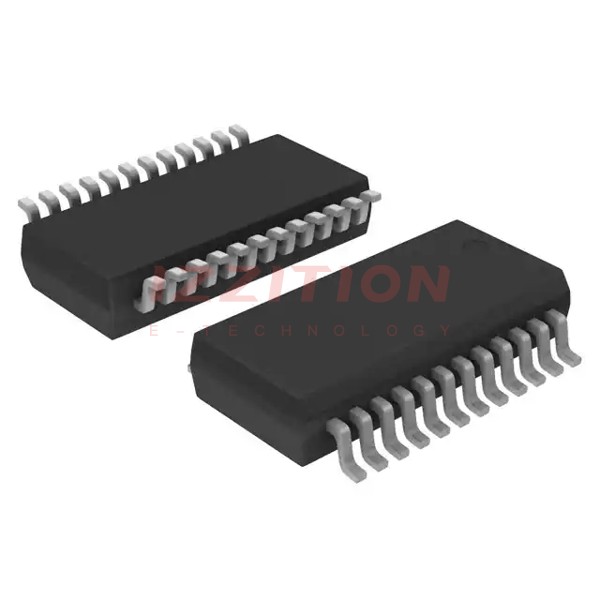

The HMC252AQS24ETR is a low-cost, non-reflective Single-Pole Six-Throw (SP6T) RF switch manufactured by Analog Devices Inc. This component is designed for wideband operation, spanning from DC to 3 GHz, making it suitable for various RF and microwave applications. It is packaged in a 24-lead QSOP (Quad Flat Small Outline Package), which is compact and efficient for modern electronic designs.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | 24-lead QSOP |
| Frequency Range | DC to 3 GHz |
| Switch Type | Single-Pole Six-Throw (SP6T) |
| Insertion Loss | Typically 1.5 dB at 2 GHz |
| Isolation | Typically 40 dB at 2 GHz |
| Power Handling | Up to 24 dBm |
| Control Voltage | 0 to 5 V |
Key Features
- Low insertion loss and high isolation, ensuring minimal signal degradation and interference.
- Wideband operation from DC to 3 GHz, making it versatile for various RF applications.
- Non-reflective design to reduce signal reflections and improve system performance.
- Compact 24-lead QSOP package, suitable for space-constrained designs.
- Low control voltage requirement (0 to 5 V) for easy integration with digital control systems.
Applications
- RF and Microwave Systems: Suitable for use in RF switches, beamformers, phase shifters, and vector modulators.
- Communications Systems: Used in communications analog front ends, I/Q modulators, and demodulators.
- Instrumentation and Test Equipment: Ideal for RF connectorized modules and system-in-package solutions.
- Wireless Sensor Networks: Can be used in wireless sensor networks due to its low power consumption and high performance.
Q & A
- What is the frequency range of the HMC252AQS24ETR?
The HMC252AQS24ETR operates from DC to 3 GHz. - What type of switch is the HMC252AQS24ETR?
The HMC252AQS24ETR is a Single-Pole Six-Throw (SP6T) RF switch. - What is the package type of the HMC252AQS24ETR?
The HMC252AQS24ETR is packaged in a 24-lead QSOP. - What are the typical insertion loss and isolation values at 2 GHz?
The typical insertion loss is 1.5 dB, and the typical isolation is 40 dB at 2 GHz. - What is the maximum power handling of the HMC252AQS24ETR?
The maximum power handling is up to 24 dBm. - What is the control voltage range for the HMC252AQS24ETR?
The control voltage range is 0 to 5 V. - Is the HMC252AQS24ETR suitable for high-frequency applications?
Yes, it is suitable for high-frequency applications up to 3 GHz. - What are some common applications of the HMC252AQS24ETR?
Common applications include RF and microwave systems, communications systems, instrumentation, and wireless sensor networks. - Why is the non-reflective design important?
The non-reflective design reduces signal reflections, improving overall system performance. - Where can I find detailed specifications and datasheets for the HMC252AQS24ETR?
Detailed specifications and datasheets can be found on the official Analog Devices website, as well as on distributor sites like Mouser and Digi-Key.
