Overview

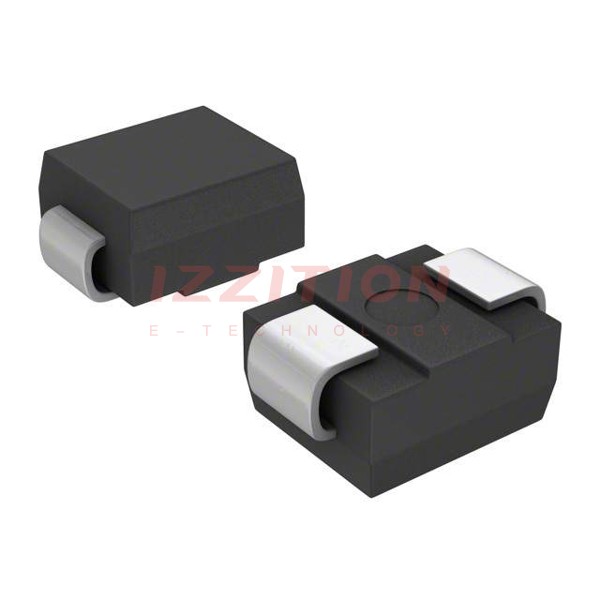

The MBRS1100TR is a surface-mount Schottky rectifier produced by Vishay General Semiconductor - Diodes Division. This component is designed to provide low forward voltage drop and is ideal for applications requiring compact size and high efficiency. The MBRS1100TR is part of Vishay's extensive range of diodes and rectifiers, which are widely used in various electronic devices such as computers, smartphones, televisions, cars, and medical devices.
Key Specifications
| Characteristic | Symbol | Value | Unit |
|---|---|---|---|
| Peak Repetitive Reverse Voltage | VRRM | 100 | V |
| Working Peak Reverse Voltage | VRWM | 100 | V |
| DC Blocking Voltage | VR | 100 | V |
| Average Rectified Forward Current (TL = 163°C) | IF(AV) | 1.0 | A |
| Non-Repetitive Peak Surge Current (Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz) | IFSM | 50 | A |
| Operating Junction Temperature | TJ | −65 to +175 | °C |
| Maximum Instantaneous Forward Voltage (iF = 1.0 A, TJ = 25°C) | VF | 0.75 | V |
| Maximum Instantaneous Reverse Current (Rated dc Voltage, TJ = 25°C) | IR | 0.5 | mA |
Key Features
- Small, compact surface-mountable package with J-bend leads, suitable for automated handling.
- Highly stable oxide passivated junction.
- Low forward voltage drop, making it ideal for high-frequency rectification and free-wheeling applications.
- Pb-free package, compliant with environmental regulations.
- High thermal stability and reliability.
Applications
The MBRS1100TR is used in a wide range of electronic devices, including:
- Computers and smartphones.
- Televisions and other consumer electronics.
- Automotive systems.
- Medical devices.
- Industrial applications requiring compact and efficient rectification.
Q & A
- What is the peak repetitive reverse voltage of the MBRS1100TR?
The peak repetitive reverse voltage (VRRM) is 100 V. - What is the average rectified forward current of the MBRS1100TR at 163°C?
The average rectified forward current (IF(AV)) at 163°C is 1.0 A. - What is the maximum instantaneous forward voltage of the MBRS1100TR?
The maximum instantaneous forward voltage (VF) at 1.0 A and 25°C is 0.75 V. - What is the operating junction temperature range of the MBRS1100TR?
The operating junction temperature range is −65 to +175 °C. - Is the MBRS1100TR Pb-free?
Yes, the MBRS1100TR is available in a Pb-free package. - What are some common applications of the MBRS1100TR?
The MBRS1100TR is used in computers, smartphones, televisions, automotive systems, medical devices, and various industrial applications. - What is the non-repetitive peak surge current of the MBRS1100TR?
The non-repetitive peak surge current (IFSM) is 50 A. - What is the maximum instantaneous reverse current of the MBRS1100TR at 25°C?
The maximum instantaneous reverse current (IR) at 25°C is 0.5 mA. - Why is the MBRS1100TR suitable for high-frequency applications?
The MBRS1100TR is suitable for high-frequency applications due to its low forward voltage drop and high thermal stability. - How is the MBRS1100TR packaged?
The MBRS1100TR is packaged in a small, compact surface-mountable package with J-bend leads, suitable for automated handling.
